Tổng quan về thông số kỹ thuật
-
Measurement range
pH 0 to 14
-
Process temperature
0 to 140 °C (32 to 284 °F)
-
Process pressure
1 to 14 bar (15 to 203 psi)
Phạm vi ứng dụng

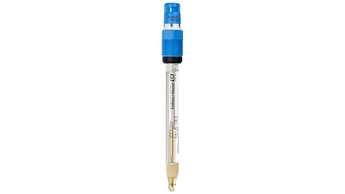

Ceragel CPS71D is the digital specialist for demanding processes and hygienic applications. Its contamination-resistant gel guarantees stable measurement even in flowing media or low conductivity. The sensor measures reliably at high temperatures and is non-toxic assuring highest safety. Ceragel CPS71D is not the latest Memosens generation. To get information on the new Memosens sensors with extended functionality, click CPS71E for chemical applications and CPS61E for hygienic applications.
Process technology and monitoring of processes with:
- Quickly changing pH values
- High proportion of electrode poisons such as H2SChemical industry
Hygienic and sterile applications:
- Fermenters
- Biotechnology
- Life sciences
With ATEX, FM, and CSA approval for application in hazardous areas
Lợi ích
Sensor resists strong acids and bases and high organic loads
Suitable for CIP/SIP and autoclaving maintaining high accuracy
Free from animal-based materials and from acrylamide
Maximum process safety through non-contact inductive signal transmission
Enables predictive maintenance due to storage of sensor and process-specific data
Reduced operating costs thanks to minimized process downtime and extended sensor lifetime
Video
-
The pH-value of a liquid can be calculated using the potentiometric measurement principle. This video shows what it is about and how this measuring principle works.
-
Memosens converts the measured value to a digital signal and transfers it to the transmitter without a contacting connection. This video shows how Memosens optimizes process control and maintenance.
Lựa chọn Extended
-
Sản phẩm cao cấp
- Chức năng cao và tiện lợi
Công nghệ vượt trội
Đơn giản

-
Sản phẩm chuyên dụng
- Dành cho các ứng dụng đòi hỏi cao
Công nghệ vượt trội
Đơn giản
Có thể thay đổi
Lựa chọn FLEX | Công nghệ vượt trội | Đơn giản |
---|---|---|
Lựa chọn Fundamental Đáp ứng nhu cầu đo lường cơ bản |
Công nghệ vượt trội
|
Đơn giản
|
Lựa chọn Lean Xử lý dễ dàng các quy trình cốt lõi |
Công nghệ vượt trội
|
Đơn giản
|
Lựa chọn Extended Tối ưu hóa quy trình bằng công nghệ tiên tiến |
Công nghệ vượt trội
|
Đơn giản
|
Lựa chọn Xpert Làm chủ các ứng dụng khó khăn nhất |
Công nghệ vượt trội
|
Đơn giản
Có thể thay đổi |
-
Measuring principle
Potentiometric
-
Application
Aggressive chemical and hygienic applications, process
-
Characteristic
Analog, digital pH single-rod measuring cells
For chemical process, hygienic and sterile applications with an ion trap for poison-resistant reference -
Measurement range
pH 0 to 14
-
Measuring principle
Ceramic diaphragm, ion-trap
-
Design
All shaft lengths with temperature sensor
Advanced gel technology
Digital electrode with Memosens technology -
Material
Glass and ceramic
-
Dimension
Diameter: 12 mm (0.47 inch)
Shaft lengths: 120, 225, 360 and 425 mm
(4.72, 8.86, 14.2 and 16.7 inch) -
Process temperature
0 to 140 °C (32 to 284 °F)
-
Process pressure
1 to 14 bar (15 to 203 psi)
-
Temperature sensor
NTC 30k
-
Ex certification
ATEX, FM, CSA
-
Connection
Inductive, digital connection head with Memosens technology
-
Ingres protection
IP68
-
Additional certifications
3A, biocompatibility
