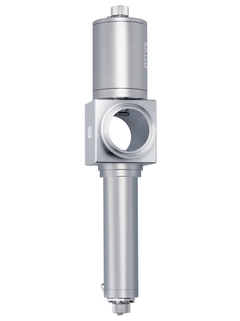

Inline turbidity sensor
OUSTF10

Turbidity and suspended solids measurement by light scattering and absorbance

The OUSTF10 scattered light turbidity sensor is used for measurement of suspended solids, emulsions and immiscible fluids in process liquids. It provides you with all desired information from product purity to filter blocking. As a result, you gain more control over the quality of your products and processes. OUSTF10 is ready for all kinds of environments, such as very high temperatures, hazardous areas (ATEX, FM) and hygienic processes (CIP/SIP).

Định cỡ
Định giá sau khi đăng nhập và lập cấu hình

So sánh

Chọn nhanh

Chọn theo đề xuất của chúng tôi

<%label%>
-- selected coding

-- selected label
<%label%>
Bạn muốn có nhiều lựa chọn hơn? Vui lòng sử dụng công cụ lựa chọn mã thiết bị để tiếp tục.
<%feature%>
-- selected coding

-- selected label
<%feature%>
<%coding%>

<%label%>

Bạn muốn có nhiều lựa chọn hơn? Vui lòng sử dụng công cụ lựa chọn mã thiết bị để tiếp tục.
Process Connection
<%coding%>

<%label%>

<%coding%>

<%label%>

<%message%>

Các add-on tùy chọn

Vui lòng sử dụng công cụ lựa chọn mã thiết bị để tiếp tục.

hoặc

Công cụ lựa chọn mã thiết bị

Tiếp tục lựa chọn từ tất cả tùy chọn có thể

Cấu hình

Các thành phần bổ sung

Multichannel transmitter
Liquiline CM44P

Multiparameter device for process photometers and Memosens sensors
Thông tin bổ sung
So sánh

Lợi ích
Accurate and highly sensitive purity monitoring for better product quality
Low-maintenance sensor with long service life and stable operation
Optional long pass NIR filter to minimize color related measurement errors
Reliable detection of heat exchanger leaks
Suitable for cleaning-in-place (CIP)...

Hiển thị thêm
Accurate and highly sensitive purity monitoring for better product quality
Low-maintenance sensor with long service life and stable operation
Optional long pass NIR filter to minimize color related measurement errors
Reliable detection of heat exchanger leaks
Suitable for cleaning-in-place (CIP) and sterilization-in-place (SIP)
Approved for hazardous area use

Hiển thị bớt

Phạm vi ứng dụng
The OUSTF10 sensor measures turbidity for:

Quality control / Purity monitoring

Filter monitoring

Condensate monitoring

Turbidity in breweries

Heat exchanger leakage detection

Turbidity in brine

With its international explosion-protection...

Hiển thị thêm
The OUSTF10 sensor measures turbidity for:

Quality control / Purity monitoring

Filter monitoring

Condensate monitoring

Turbidity in breweries

Heat exchanger leakage detection

Turbidity in brine

With its international explosion-protection approvals, such as ATEX and FM, the sensor is suitable for hazardous area use.

Hiển thị bớt

Tín năng và thông số kỹ thuật

Quay lại

Details

Measuring principle

NIR absorbance
Application

Turbidity and suspended solids measurement for filter control and quality measurement
Measurement range

0 to 200 FTU
0 to 200 ppm DE
Material

Sensor housing: 316L
Process temperature

0 to 90 °C (32 to 194 °F) continuous
Max. 130 °C (266 °F) for 2 hours
Process pressure

Max. 100 bar (1450 psi)
(depending on flow through assembly)
Ex certification

ATEX II 2G Ex db IIC T5 Gb
FM Cl.1, Div. 1, Group B, C, D
Ingres protection

IP 65 (NEMA 4)
Additional certifications

FDA

Hiển thị thêm
Hiển thị bớt

Tài liệu / Tài liệu hướng dẫn / Phần mềm

Hình thức tải về

Lọc

OUSTF10 Technical Information
Optical sensor with the OUA260 flow assembly for the measurement of
turbidity and undissolved solids

Technical Information (TI)
OUSTF10 Operating Instructions
Optical sensor with the OUA260 flow assembly for the measurement of
undissolved solids

Operating Instruction (BA)
Operating Instructions Model OUM670 Turbidity Monitor, Model OUSTF10 Inline Sensor
Monitor/Sensor to measure low levels of non-dissolved solids

Operating Instruction (BA)
OUSAF12, OUSAF21, OUSAF22, OUSAF44, OUSAF46, OUSTF10 Sicherheitshinweise für elektrische Betriebsmittel im explosionsgefährdeten Bereich Safety instructions for electrical apparatus for explosion-hazardous areas Conseils de sécurité pour matériels électriques destinés aux zones explosibles Safety Instructions
Safety instructions for electrical apparatus for explosion-hazardous
areas

Ex Safety Instructions (XA)
