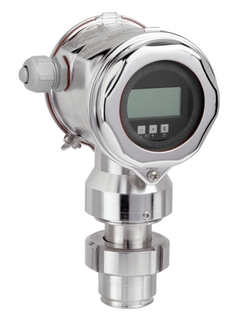

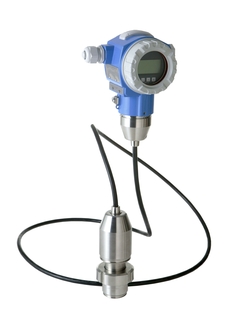

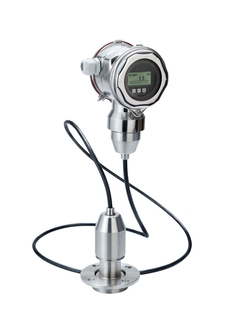

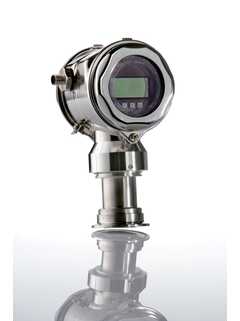

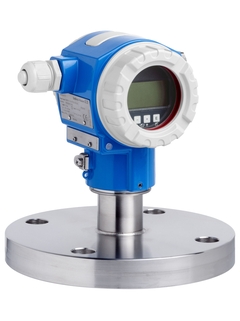

Deltapilot FMB70 - Hydrostatic level measurement

Hydrostatic
Level measurement
Deltapilot FMB70

Highest performance pressure sensor with the Contite cell for hydrostatic level measurement

FMB70
Please Wait (spinning wheel)
Đang tải giá
Giá tạm thời không có sẵn
Price on request
from CHF ??.-

Tổng quan về thông số kỹ thuật

  • Accuracy

    Standard 0.1%
    Optional 0.075%

  • Process temperature

    -10°C...+100°C
    (+14°F...+212°F)

  • Pressure measuring range

    100 mbar...10 bar
    (1.5 psi...150 psi)

  • Process pressure / max. overpressure limit

    40 bar (600 psi)

  • Main wetted parts

    Alloy C
    316L

  • Max. measurement distance

    100 m (328 ft) H2O

  • Material process membrane

    316L, AlloyC,
    Gold-Rhodium

  • Measuring cell

    100 mbar...10 bar
    (1.5 psi...150 psi)

Phạm vi ứng dụng

The Deltapilot FMB70 with the condensate resistant Contite measuring cell and two-chamber housing is typically used in the process and hygienic applications. It is made for level measurement in liquid and paste-like media in open or closed containers and unaffected by possible foam formation. The integrated HistoROM/M-DAT data module makes management of process and device parameters easy. Designed according to IEC 61508 for use in SIL3 safety systems.

For level and/or pressure measurement.

  • Process connections: Threads, flanges and hygienic connections

  • Temperature: –10 to +100°C (14 to 212°F) (+135°C (275°F) for 30 minutes maximum)

  • Measuring range: 0.1 to 10 bar rel. (1.5 to 150 psi)

  • Accuracy: ±0.075%

  • International explosion protection certificates, overfill prevention WHG, SIL, hygienic certificates, marine approvals

Lợi ích

  • Hermetically sealed Contite measuring cell with condensate-resistance, high reference accuracy: ±0.1%, optionally ±0.075% and minimum temperature effects thanks to active temperature compensation

  • Best batch-to-batch repeatability and long-term stability

  • Modular concept for easy replacement of display or electronics

  • HistoROM/M-DAT data backup for instrument settings and measured values

  • Function-monitored from the measuring cell to the electronics

  • Seamless and independent system integration (HART/PA/FF)

  • International usage thanks to a wide range of approvals
