iTEMP TMT80
Temperature head transmitter

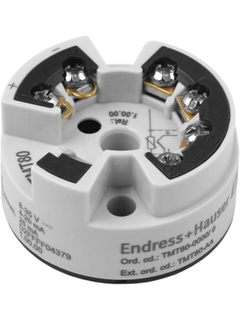

Product picture temperature head transmitter iTEMP TMT80 ©Endress+Hauser

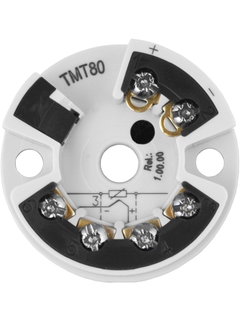

Product picture temperature head transmitter iTEMP TMT80 with terminal assignment ©Endress+Hauser

Transformation of the sensor signals into stable and standardized output signal for all industries

This transmitter is configurable and supports both selected resistance sensor types and thermocouples. In order to obtain the highest measurement precision, linearization characteristics for every type of sensor are stored in the transmitter.
The standardized output signal used for process measurement is a 4 to 20 mA signal. This offers fast, easy and cost-saving temperature measuring and reliable measurement values for a wide range of non-ex industry applications.

  • Lợi ích

    • 2-wire technology, 4 to 20 mA analog output

    • Fault signal on sensor break or short circuit,
      presettable to NAMUR NE 43

    • Meets the EMC requirements as per NAMUR NE 21

    • Galvanic isolation 500 V (input/output)

    • Application specific measuring range setting

  • Phạm vi ứng dụng

    • PC programmable (PCP) temperature head transmitter for converting various input signals into a scalable 4 to 20 mA analog output signal

    • Suitable for resistance thermometer (RTD) and thermocouple (TC)

    • Device configuration using PC with configuration kit...

Tín năng và thông số kỹ thuật

Quay lại

Details

  • Measuring principle

    Head transmitter

  • Input

    1 x RTD, TC

  • Output

    1 x analog 4...20 mA

  • Auxiliary power supply

    8...35 V DC

  • Communication

    PCP (pc-programmable)

  • Installation

    Terminal head form B

  • Accuracy

    (Pt100, -50...250 °C) <= 0,5 K

    (Pt100, -58...482 °F) <= 0,9 °F

  • Galvanic isolation

    yes
