Capacitance
Point level detection
Minicap FTC260

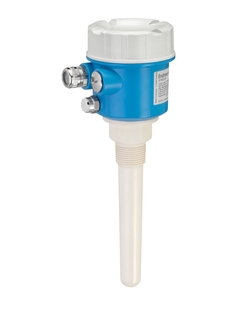

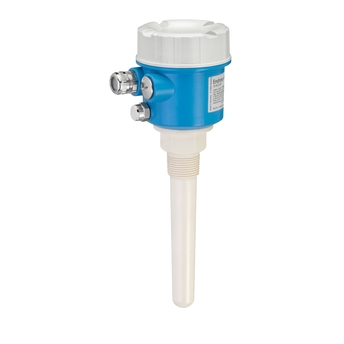

Minicap FTC260 plastic housing ©Endress+Hauser

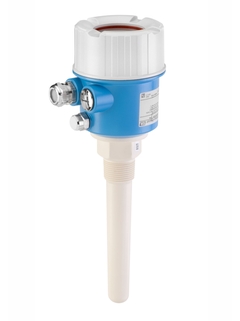

Minicap FTC260 aluminium housing ©Endress+Hauser

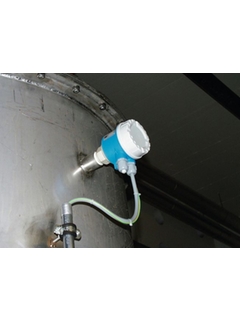

Minicap FTC260 application ©Endress+Hauser
  • Minicap FTC260 plastic housing
  • Minicap FTC260 aluminium housing
  • Minicap FTC260 application

Designed for light bulk solids

Minicap FTC260 is a simple and cost-effective rod probe for point level detection in bulk solids, particularly suited to applications involving aggressive media and heavy build-up. It is designed for point level detection of light bulk solids, e.g. grain products, flour, milk powder, animal feed, cement, chalk or gypsum.

Các thành phần bổ sung

  • Lợi ích

    • Simple mounting and commissioning without calibration

    • Mechanical safety, cost-efficiency and long operating life due to no wearing parts

    • High operational safety and reliability due to active build-up compensation

  • Phạm vi ứng dụng

    For point level detection of light bulk solids, with a grain size up to max. 30mm and a dielectric constant εr ≥ 1.6.
    Typical applications: Grain products, flour, milk powder, animal feed, cement, chalk or gypsum.

    • Process connection: Threads

    • ...

Tín năng và thông số kỹ thuật

Quay lại

Details

  • Measuring principle

    Capacitive Solid

  • Characteristic / Application

    Compact rod probe with build-up compensation
    easy start up

  • Specialities

    FDA-listed material

  • Supply / Communication

    10,8 ... 45V DC, DC-PNP 3-wire
    20 ... 253V AC, or
    20 ... 55V DC, Relay output

  • Ambient temperature

    -40 °C ... 80 °C
    (-40 °F ... 176 °F)

  • Process temperature

    -40 °C ... 130°C
    (-40 °F ... 266 °F)

  • Process pressure absolute / max. overpressure limit

    -1 ... 25 bar
    (-14.5 ... 360 psi)

  • Main wetted parts

    PPS = Polyphenylene sulphide
    (glass fibre content approx. 40%)

  • Process connection

    R1"
    NPT1"

  • Sensor length

    140 mm (5.51")

  • Communication

    PNP transistor output
    Relay output (potential-free
    change-over contact / SPDT)

  • Certificates / Approvals

    ATEX, IEC, FM, CSA, NEPSI, EAC

  • Options

    Aluminium Housing

  • Application limits

    Solids, grain size max. 30 mm (1.2"),
    DK min 1,6
    Flexural strength 1400 N (at probe tip)

Tài liệu / Tài liệu hướng dẫn / Phần mềm
