Liquiphant FTL62 has a strong focus on specific applications with aggressive liquids and simplicity with easy proof testing, reliability and safety (SIL) with compliance to IEC 61508, API 2350 and WHG. The vibronic device is determined for a safe and active measuring technology in aggressive liquids and want a reliable and proven point level detection for tank overfill protection and pump dry run protection. The FTL62 is easy to use, has a digital connection and gives a real-time data at hand.

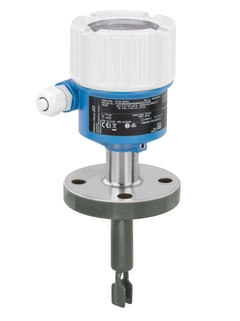

Point level switch with extension tube for pumpable liquids
International explosion protection certificates, overfill protection WHG, SIL, marine approvals
Lợi ích
Universal measuring principle for limit detection – proven vibronic technology
Developed according IEC 61508 for highest safety – SIL2/3 applications (3rd party approved)
Periodic proof testing is quickly and simple organized with guided wizards via the SmartBlue-App or via a test button or magnetic pin from outside. Via digital communication you can initiate the device for a fast and easy testing of the safety loop.
Heartbeat Technology allows safe, continuous diagnostics and a simple verification, without process interruption
Centralized asset management with easy online access to all device information thanks to digital communication
Compact vibronic device with highly corrosion-resistant coating for aggressive media, Optional extension tube up to 3 m (9.8ft), Modular housing concept
Specialities
Heartbeat Technology, Bluetooth® Operation and maintenance SmartBlue App, LED Module, RFID TAG for easy identification, Second line of defense Temperature spacer for high process temperature, Plug and play functionalities
Supply / Communication
19...253V AC / 2-wire, 10...55V / DC-PNP 3-wire, 9...20V DC with relay DPDT, 19...253V AC or 19...55V DC with relay DPDT, 2-wire NAMUR, 2-wire PFM, 4-20mA HART
Ambient temperature
-60 °C...+70 °C (-76 °F...+158 °F)
Process temperature
-50 °C...+150 °C (-58 °F...+302 °F)
Process pressure / max. overpressure limit
Vacuum...40 bar Vacuum...580 psi
Min. density of medium
0.5 g/cm³ (0.4 g/cm³ optional)
Main wetted parts
ECTFE, PFA (Edlon, RubyRed or conductive) 316L Enamel
ATEX, IEC Ex, NEPSI, EAC Ex, KC, JPN Ex, INMETRO, UK Ex
Safety approvals
Overfill protection WHG SIL2/ SIL 3 according to IEC 61508
Design approvals
EN 10204-3.1 ASME B31.3 Process Piping CRN
Marine approval
ABS/ LR/ BV/ DNV
Options
Ambient temperature down to -60 °C (-76 °F), Heavy duty stainless steel housing
Components
FTL325P Interface PFM FTL325N Interface NAMUR
Measuring principle
Vibration Density
Product Headline
Vibronic point level device with extension tube for liquids with highly corrosion-resistant coating. Reliable measurement even for changing media properties, flow, turbulences, gas bubbles, foam, vibrations or build-up.
Characteristic / Application
Compact vibronic device with highly corrosion-resistant coating for aggressive media, Optional extension tube up to 3 m (9.8ft), Modular housing concept
Ambient temperature
-60 °C...+70 °C (-51 °F...+158 °F)
Process temperature
-50 °C...+150 °C (-58 °F...+302 °F)
Process pressure
Vacuum...40 bar Vacuum...580 psi
Sensor length
Up to 3 m (9.8ft)
Certificates / Approvals
ATEX, IEC Ex
Specialities
Heartbeat Technology, Bluetooth® Operation and maintenance SmartBlue App, LED Module, RFID TAG for easy identification, Second line of defense Temperature spacer for high process temperature, Plug and play functionalities
Components
Density Computer FML621
Measuring range
Density range: 0.3 to 2 g/cm³
Other approvals and certificates
Overfill protection WHG SIL2/ SIL 3 according to IEC 61508
