Servo tank gauging instrument
Proservo NMS5

Proservo NMS5 ©Endress+Hauser

High precision servo measurement for liquid level, interface and density

The intelligent tank gauge Proservo NMS5 is designed for high accuracy liquid level measurement in custody transfer and inventory control applications. It fulfills the exact demands of tank inventory management and loss control and is optimized in regards of total cost saving and safe operation.

Chọn nhanh

Chọn theo đề xuất của chúng tôi
    -- selected coding
    -- selected label
    <%label%>
    -- selected coding
    -- selected label
    <%feature%>
  • Process Connection
      <%label%>
      <%label%>

  • <%message%>

NMS5
Hiện chi tiết Ẩn chi tiết
Hiện chi tiết
Quay lại Mục chọn nhanh
  • <%feature%>
    <%coding%>
    <%label%>
pc
  • Các add-on tùy chọn
Vui lòng sử dụng công cụ lựa chọn mã thiết bị để tiếp tục.
hoặc

Công cụ lựa chọn mã thiết bị

Tiếp tục lựa chọn từ tất cả tùy chọn có thể

  • Lợi ích

    • Measures two clear interface levels and specific gravity of up to three liquid phases

    • Profiling of Iiquid density throughout the tank (tank profile) and upper layer (I/F profile)

    • SIL2 certified alarm output (min., max. and range)

    • Wetted parts are...

  • Phạm vi ứng dụng

    For measurement of: Oil (crude, light, fuel, edible), LPG/LNG, petrochemicals, chemicals, water /chemical interface measurement, foods, liquid food.

    • Process connections: Flanges

    • Temperature: -200 to +200°C (-328 to +392°F)

    • Measuring range: Maximum 47m (...

Tín năng và thông số kỹ thuật

Quay lại

Details

  • Measuring principle

    Servo / Float Tank Gauging

  • Characteristic / Application

    High precision measurement for liquid level, interface, density

  • Supply / Communication

    85-264 VAC
    20-55 VAC/20-62 VDC

  • Accuracy

    +/- 0.7 mm (+/- 0.03")

  • Ambient temperature

    Standard:
    -20 °C ... 60 °C
    (-4 °F ... 140 °F)
    Optional:
    -40 °C ... 60 °C
    (-40°F ... 140 °F)

  • Process temperature

    -200 °C ... 200 °C
    (-328 °F ... 328 °F)

  • Process pressure absolute / max. overpressure limit

    0.2 bar g ... 25 bar
    (3 psi ... 363 psi)

  • Main wetted parts

    316 SUS

  • Process connection

    DN80 ... DN150
    3" ... 6"

  • Max. measurement distance

    Standard: maximum 47 m (154 ft)

  • Communication

    4 ... 20 mA HART
    Modbus
    V1
    WM550
    BPM
    Mark-Space
    Contact relay x4

  • Certificates / Approvals

    ATEX, FM, CSA, IEC Ex, TIIS, NEPSI

  • Safety approvals

    SIL2

  • Application limits

    Stilling well or guide wires for turbulent application
    Maximum measuring range with custody transfer approval: 28 m (92 ft)
    Recommend PTFE displacer for high viscosity application
    Interface measurement requires min. difference of 0.100 g/ml between layers

Tài liệu / Tài liệu hướng dẫn / Phần mềm

  • Tank side monitor For tank side monitoring and controlling of Proservo NMS 5 intelligent tank gauge

    Remote monitoring and control for Proservo tank gauge
    Indication via two line illuminated display
    Operation via 3 optical keys (touch control) and Endress+Hauser user
    friendly
    Programming matrix
    Protection class IP 67 housing
    Explosion proof forhazardous area mounting

    Technical Information (TI)
  • Proservo NMS 5/7 series

    Intelligent tank gauge with high accuracy performance
    Liquid level, I/F, Density & Density Profile

    Technical Information (TI)
  • Proservo NMS5 - Technical Information

    • SIL2 Certified
    • Measures liquid to an accuracy of +/- 0.7 mm
    •Measures two clear interface levels and specific gravity of
    up to three liquid phases
    •Profiling of Iiquid density
    throughout the
    tank (Tank profile) and upper layer (I/F profile)
    •Latest microtechnology keeps the design simple, lightweight
    and compact
    •Wetted parts are completely separated from the
    electronic circuit
    •Tank top mounting with 3” flange weighing
    only 12
    kg (aluminum version)
    • Wide range of output signals including
    V1,
    RS 485,WM550,M/S, Enraf BPM and HART® protocol

    Technical Information (TI)
  • Promonitor NRF560 Operating Instructions

    Tank side monitor for integration and communication with Proservo and
    Prothermo

    Operating Instruction (BA)
  • Proservo NMS5 - Operating Instructions

    Proservo NMS5 of intelligent tank gauge is designed for high-accuracy
    liquid level measurement in storage and process applications.
    NMS5 performs the tank inventory management, loss control, total cost
    saving, and safe operation.
    NMS5 is designed for the purpose of single or multi-task installations,
    converting a wide range of measurement functions.

    Operating Instruction (BA)
  • Proservo NMS 53x Operating Instructions

    High accuracy servo level gauge based on the principle of displacement
    measurement

    Operating Instruction (BA)
  • Proservo NMS5/7 series- Operating Instructions

    The proservo NMS series of intelligent tank gauges are designed for high
    accuracy measurement in storage and process applications.They fulfill
    the exact demands of tank inventory management, loss control, total
    saving and safe operation.

    Operating Instruction (BA)
  • MODBUS communication protcol-Proservo NMS5

    Tank Gauging - MODBUS communication protocol

    Short Instruction (KA)
    07/07
    Tiếng Anh
  • WM550 communication protcol-Proservo NMS5

    Tank Gauging - WM550 communication protocol

    Short Instruction (KA)
    04/04
    Tiếng Anh
  • Safety Instruction Proservo NMS53x Series (NMS5)

    Safety Instructions for Electrical Apparatus Certified for Use in
    Explosion-hazardous Areas

    Ex Safety Instructions (XA)
  • Proservo NMS53x Series - Safety Instruction

    Safety Instructions for Electrical Apparatus Certified for Use in
    Explosion-hazardous
    Areas Designation according to Directive 94/9/EC

    Ex Safety Instructions (XA)
  • Proservo NMS53x Series - Safety Instructions

    Safety Instructions for Electrical Apparatus Certified for Use in
    Explosion-hazardous
    Areas Designation according to IECEx 02:Equipment Protection Level (EPL)

    Ex Safety Instructions (XA)
  • Proservo NMS5

    DIBt Z-65.11-155

    Certificate (ZE)
  • Proservo NMS5-, NMS7-

    Functional Safety data sheet / Datenblatt zur Funktionalen Sicherheit

    Special Documentation (SD)
  • Proservo NMS5- / NMS7- - Functional Safety Manual

    Operating minimum (e.g. dry run protection), maximum (e.g. overfill
    protection) and range monitoring (4 to 20 mA only) of liquids of all
    types in systems to satisfy particular safety systems requirements as
    IEC
    61508/IEC61511.

    Special Documentation (SD)
  • Wykaz wyrobów akcyzowych

    Sk&
    322;ady podatkowe i terminale paliwowe

    Publications (PU)
    10/09
    Người Ba Lan
  • Rozporz& 261;dzenie w sprawie wymaga& 324; dla zbiorników pomiarowych

    Sk&
    322;ady podatkowe i terminale paliwowe

    Publications (PU)
    10/09
    Người Ba Lan
  • Napędy i Sterowanie marzec 2008

    Przetworniki poziomu ze sterowaniem nadążnym

    Publications (PU)
    08/09
    Người Ba Lan
  • Mesure de niveau

    Aperçu des produits pour des applications dans des liquides et des
    solides en vrac

    Fields of Activities (FA)
    03/19
    fr
  • Level measurement

    Product overview for applications in liquids and bulk solids

    Fields of Activities (FA)
    03/17
    Tiếng Anh
  • Level measurement

    Product overview for applications in liquids and bulk solids

    Fields of Activities (FA)
    03/17
    Tiếng Anh
  • Catálogo Medición y Detección de nivel

    Gama de productos para aplicaciones con líquidos y sólidos

    Fields of Activities (FA)
    03/17
    Tiếng Tây Ban Nha
  • Füllstandmesstechnik

    Produktübersicht für Anwendungen in Flüssigkeiten und Schüttgütern

    Fields of Activities (FA)
    03/17
    Tiếng Đức
  • Tank Gauging

    Система коммерческого и оперативного учета продуктов
    в резервуарных парках.

    Competence Brochure (CP)
    07/15
    Tiếng Nga
  • Competence Brochure: Proservo calibration test rig

    Vertical accuracy test facilty for
    servo tank gauging instruments (NMS5 / NMS7)

    Competence Brochure (CP)
    04/17
    Tiếng Nhật
  • Competence Brochure: Proservo calibration test rig

    Vertical accuracy test facilty for
    servo tank gauging instruments (NMS5 / NMS7)

    Competence Brochure (CP)
    04/17
    Tiếng Anh
  • Competence Brochure: Proservo calibration test rig

    Vertical accuracy test facilty for
    servo tank gauging instruments (NMS5 / NMS7)

    Competence Brochure (CP)
    03/19
    Tiếng Nhật
  • Competence Brochure: Proservo calibration test rig

    Vertical accuracy test facilty for
    servo tank gauging instruments (NMS5 / NMS7)

    Competence Brochure (CP)
    03/19
    Tiếng Anh
  • Tank Gauging flexibel integriert

    Petrostock SA, Genf/CH, modernisiert Tankmesstechnik mit
    Endress+Hauser in bestehendem Tank Gauging System

    Case Studies (CS)
    10/11
    Tiếng Đức
  • DTM Single, Proservo_NMSx_HART_FW_4_27_zz_Dev_Rev_3, 09.07.2019 (Tank Gauging, Proservo, 0x00B6)

    HART,

    DeviceCare Version: 1.06.00

    Field Xpert - SMT70 Version: 1.03.00

    FieldCare Version: 2.13.00

    Device Type Manager (DTM)
    1.4.188.39
    Language neutral
  • NMS5 - picture

    Tank Gauge

    06/12
    Language neutral
  • Movie Proservo calibration test rig EN for iphone and ipad

    This is Movie EN mp4 720x576

    Animation
    06/15
    Tiếng Anh
  • Movie Proservo calibration test rig JA for PC

    Movie JA mp4 1280x720

    Animation
    06/15
    Tiếng Nhật
  • Movie Proservo calibration test rig JA-FLV

    This is Movie JA FLV 480 x 270

    Animation
    06/15
    Tiếng Nhật
  • Movie Proservo calibration test rig JA for iphone and ipad

    This is Movie JA mp4 720 x 576

    Animation
    06/15
    Tiếng Nhật
  • Movie Commissioning Proservo NMS5 EN for iphone and ipad

    Movie Commissioning Proservo NMS5 EN 720x576 2014

    Animation
    06/15
    Tiếng Anh
  • Movie Proservo calibration test rig EN for iphone and ipad

    This is Movie EN mp4 720x576

    Animation
    05/15
    Tiếng Anh
  • Movie Proservo calibration test rig EN-FLV

    This is Movie EN FLV 480x270

    Animation
    05/15
    Tiếng Anh
  • Movie Proservo calibration test rig EN for PC

    This is Movie EN mp4 1280x720

    Animation
    05/15
    Tiếng Anh
  • Movie Proservo calibration test rig EN

    Movie EN mp4 1280x720

    Animation
    05/15
    Tiếng Anh
  • Movie Proservo calibration test rig EN

    Movie EN mp4 1280x720

    Animation
    05/15
    Tiếng Anh
  • Commissioning Proservo NMS5

    Movie EN 1280x720 flv

    Animation
    01/15
    Tiếng Anh
  • Commissioning Proservo NMS5

    Movie EN 1280x720 mp4

    Animation
    01/15
    Tiếng Anh
  • Sakura, System&Gauging

    Product Code: NMS5-, NMS7-
    Declaration Number: KEMA 05ATEX2071

    Manufacturer Declaration
    Tiếng Anh
  • Product Family: Sakura, System & Gauging

    Product Code: NMS5-, NMS7-
    Declaration Number: KEMA 05ATEX2071

    Manufacturer Declaration
    Tiếng Anh
  • Sakura, System&Gauging

    Product Code: NMS5-, NMS7-
    Declaration Number: KEMA 05ATEX2071

    Manufacturer Declaration
    Tiếng Anh
  • SYSTEM

    Product Code: NMS5-
    Declaration Number: EC_00536_01.17

    EU Declaration
    Tiếng Đức , Tiếng Anh , fr
  • SYSTEM

    Product Code: NMS5-, NMS536-
    Declaration Number: EC_00535_01.17

    EU Declaration
    Tiếng Đức , Tiếng Anh , fr
  • SYSTEM

    Product Code: NMS5-, NMS531-, NMS532-, NMS534-, NMS535-, NMS536-
    Declaration Number: EC_00534_01.17

    EU Declaration
    Tiếng Đức , Tiếng Anh , fr
  • System&Gauging

    Product Code: NMS5-
    Declaration Number: 44 799 11 388225

    SIL Declaration
    Tiếng Đức , Tiếng Anh
  • System&Gauging

    Product Code: NMS5-
    Declaration Number: 44 799 11 388225

    SIL Declaration
    Tiếng Đức , Tiếng Anh
  • SYSTEM

    Product Code: NMS5-, NMS7-
    Region/Country: Russia (TR CU)
    Approval Agency: EAC
    Approval Number: TC BY_112 11.01. TP020 003 143

    Miscellaneous
    Tiếng Nga
  • SYSTEM

    Product Code: NMS5-, NMS7-, NMS80-, NMS81-, NMS83-
    Region/Country: Russia (TR CU)
    Approval Agency: EAC
    Approval Number: TC № RU D-JP.AZ01.B.03537

    Miscellaneous
    Tiếng Nga
  • Sakura, System&Gauging

    Product Code: NMS5-
    Approval Agency: TIIS
    Protection: Ex d IIB T4

    Explosion Protection
    Tiếng Nhật
  • Sakura, SYSTEM

    Product Code: NMS5-, NMS7-
    Approval Agency: KEMA

    Explosion Protection
    Tiếng Anh
  • Sakura, System&Gauging

    Product Code: NMS5-, NMS7-
    Approval Agency: TIIS
    Protection: Ex d IIB T4

    Explosion Protection
    Tiếng Nhật
  • Sakura, System&Gauging

    Product Code: NMS5-, NMS7-
    Approval Agency: KEMA
    Protection: Ex d IIB T6...T3 Ga/Gb, Ex d IIC T6...T3 Ga/Gb, Ex d [ia] IIB T6...T3 Ga/Gb

    Explosion Protection
    Tiếng Anh
  • Sakura, System&Gauging

    Product Code: NMS5-, NMS7-
    Approval Agency: TIIS
    Protection: Ex d IIB T4

    Explosion Protection
    Tiếng Nhật
  • Sakura, SYSTEM

    Product Code: NMS5-, NMS7-
    Approval Agency: KEMA
    Protection: Ex d IIB T6...T3 Ga/Gb, Ex d IIC T6...T3 Ga/Gb, Ex d [ia] IIB T6...T3 Ga/Gb

    Explosion Protection
    Tiếng Anh
  • Sakura, SYSTEM

    Product Code: NMS5-, NMS7-
    Approval Agency: KEMA

    Explosion Protection
    Tiếng Anh
  • Sakura

    Product Code: NMS5-
    Region/Country: China
    Approval Agency: NEPSI
    Protection: Ex d IIB T6...T3 Ga/Gb, Ex d IIC T6...T3 Ga/Gb, Ex d [ia] IIB T6...T3 Ga/Gb

    Explosion Protection
    Tiếng Trung Quốc
  • Sakura, SYSTEM

    Product Code: NMS5-, NMS7-
    Approval Agency: KEMA

    Explosion Protection
    Tiếng Anh
  • SYSTEM

    Product Code: NMS5-, NMS531-, NMS532-, NMS534-, NMS535-, NMS536-, NMS7-, NMT532-, NMT539-
    Region/Country: India
    Approval Agency: CC(O)E
    Protection: Ex d, Ex ia

    Explosion Protection
    Tiếng Anh
  • Sakura, System&Gauging

    Product Code: NMS5-
    Approval Agency: TIIS
    Protection: Ex d IIB T4

    Explosion Protection
    Tiếng Nhật
  • SYSTEM

    Product Code: NMS5-, NMS7-
    Region/Country: Russia (TR CU)
    Approval Agency: EAC
    Protection: Ex d, Ex d [ia]

    Explosion Protection
    Tiếng Nga
  • Sakura, System&Gauging

    Product Code: NMS5-
    Approval Agency: DIBt
    Approval Number: Z-65.11-155

    Overfill Prevention
    Tiếng Đức
  • System&Gauging, Sakura

    Product Code: NMS5-
    Approval Agency: DIBt
    Approval Number: Z-65.11-155

    Overfill Prevention
    Tiếng Đức
  • System&Gauging

    Product Code: NMS5-, NMS7-
    Region/Country: Germany
    Approval Agency: SVTI
    Approval Number: 302.020.14

    Overfill Prevention
    Tiếng Đức
  • Micropilot S, SYSTEM, Tankvision, TERMINALVISION

    Product Code: FMR532-, FMR540-, NMS5-, NMS7-, NMT539-, NRF590-, NXA20-, NXA820-, NXA85-
    Region/Country: Russia (GOST)
    Approval Agency: Rosstandart
    Approval Number: DE.C.29.004.A_66368

    Metrology
    Tiếng Nga
  • Sakura, System&Gauging

    Product Code: NMS5-
    Region/Country: Europe
    Approval Agency: PTB
    Approval Number: PTB4.411-96.10-NF1+NT1

    Metrology
    Tiếng Đức , Tiếng Anh , Tiếng Nhật
  • Sakura, SYSTEM

    Product Code: NMS5-
    Region/Country: Switzerland
    Approval Agency: metas
    Approval Number: CH-L-16113-00

    Metrology
    Tiếng Đức
  • SYSTEM, Tankvision

    Product Code: NMS5-, NMS7-, NMT532-, NMT539-, NRF560-, NXA820-, NXA821-, NXA822-
    Region/Country: Bulgaria
    Approval Agency: BIM (Bulgarian Institude of Metrology)
    Approval Number: 12.04.4968

    Metrology
    Tiếng Bungary
  • Sakura

    Product Code: NMS5-
    Region/Country: Belarus
    Approval Agency: BELGIM
    Approval Number: 10046

    Metrology
    Tiếng Nga
  • Sakura, SYSTEM

    Product Code: NMS5-
    Region/Country: Europe
    Approval Agency: PTB
    Approval Number: PTB4.411-96.10-NF1+NT2

    Metrology
    Tiếng Đức , Tiếng Anh
  • Sakura, SYSTEM

    Product Code: NMS5-, NMS7-, NMS80-, NMS81-, NMS83-
    Region/Country: Uzbekistan
    Approval Agency: UZS
    Approval Number: 02.7119

    Metrology
    Tiếng Nga
  • Sakura, System&Gauging

    Product Code: NMS5-
    Approval Agency: NMI
    Approval Number: T7307

    Metrology
    Tiếng Anh
  • Sakura, System&Gauging

    Product Code: NMS5-
    Approval Agency: PTB
    Approval Number: PTB4.411-96.10

    Metrology
    Tiếng Đức
  • Sakura

    Product Code: NMS5-
    Region/Country: Belarus
    Approval Agency: BELGIM
    Approval Number: 10046

    Metrology
    Tiếng Nga
  • Sakura, System&Gauging

    Product Code: NMS5-
    Approval Agency: OIML
    Approval Number: R85/2008-NL1-10.01

    Metrology
    Tiếng Anh
  • SYSTEM

    Product Code: NMS5-, NMS7-
    Region/Country: Belarus
    Approval Agency: BEL
    Approval Number: 10064

    Metrology
    Tiếng Nga
  • Sakura

    Product Code: NMS5-
    Region/Country:
    Approval Number: 006-ONML

    Metrology
    fr
  • Sakura, System&Gauging

    Product Code: NMS5-
    Approval Agency: NMI
    Approval Number: T7307

    Metrology
    Tiếng Anh
  • Sakura

    Product Code: NMS5-
    Region/Country:
    Approval Agency: ONML
    Approval Number: 006/DIR/ONML/14 DU 27/01/2014

    Metrology
    fr
  • Sakura

    Product Code: NMS5-
    Region/Country: China
    Approval Agency: SBM
    Approval Number: PAC 2015-L256

    Metrology
    Tiếng Anh
  • Sakura, SYSTEM

    Product Code: NMS5-
    Approval Agency: OIML
    Approval Number: R85/2008-NL1-10.01

    Metrology
    Tiếng Anh
  • SYSTEM

    Product Code: NMS5-, NMS7-
    Region/Country: Russia
    Approval Agency: Rosstandart
    Approval Number: JP.C.29.004.A_40686

    Metrology
    Tiếng Nga
  • SYSTEM

    Product Code: NMS5-
    Region/Country:
    Approval Agency: MSST
    Approval Number: 2617

    Metrology
  • SYSTEM

    Product Code: NMS5-, NMS7-
    Region/Country: International
    Approval Agency: TÜV

    Safety Integrity Level (SIL)
    Tiếng Anh

Phụ kiện / Phụ tùng thay thế

Nr
Order code
Specification

  • Sản phẩm cũ

  • Sản phẩm mới

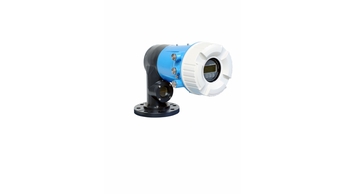

    • Proservo NMS80 - Tank gauging instrument

      Proservo NMS80

      Intelligent servo tank gauge, designed for high accuracy liquid level measurement in custody transfer and inventory control applications.

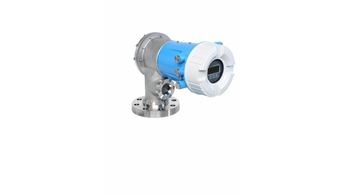

    • Proservo NMS81 - Tank gauging instrument

      Proservo NMS81

      Intelligent servo tank gauge, designed for high accuracy liquid level measurement in custody transfer and inventory control applications. Stainless steel version.

Câu chuyện thành công

So sánh các sản phẩm
Trang web này sử dụng cookie. Để tiếp tục duyệt trang web, bạn sẽ đồng ý các điều khoản sử dụng cookie. Tìm hiểu thêm tại đây

Vui lòng chọn thị trường / khu vực của bạn

Đi đến thị trường / khu vực được chọn
