Vibronic
Point level detection
Liquiphant FTL50

Compact vibration point level switch for liquids in all industries

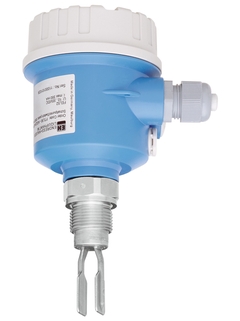

  • Liquiphant FTL50 ©Endress+Hauser

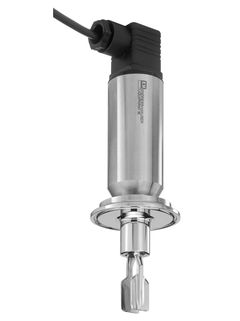

  • Liquiphant FTL50 ©Endress+Hauser

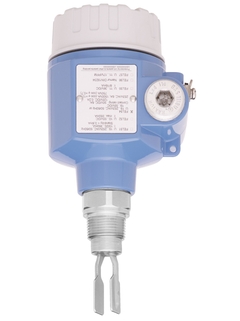

  • Liquiphant FTL50 ©Endress+Hauser

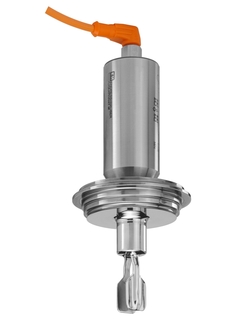

  • Liquiphant FTL50 ©Endress+Hauser
  • Vibronic measuring principle

  • Liquiphant with permanent function check is the safe choice for point level detection in liquids

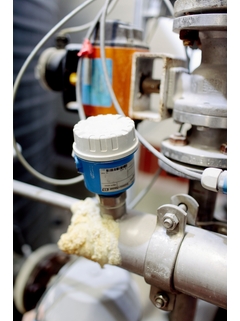

  • Liquiphant FTL50 application ©Endress+Hauser

Liquiphant FTL50 is a point level switch for use in hazardous areas with all international certificates. Useable in all industries. FTL50 offers functional safety SIL2/SIL3. With the second line of defense the highest degree of safety and availability of the device can be guaranteed. Reliable measurement values, not affected by: changing media properties, flow, turbulences, gas bubbles, foam, vibrations or build-up.

Lợi ích

  • Use in safety systems requiring functional safety to SIL2/SIL3 in accordance with
    IEC 61508/IEC 61511-1

  • International explosion protection certificates and overfill prevention certificate (WHG)

  • No calibration required, easy to start up

  • No mechanically moving parts: no maintenance, no wear, long operating life.
    Monitoring of fork for damage: guaranteed function

  • Second line of defense to protect the environmental

  • Variety of standardized process connections for all applications

  • Stainless steel (316L) and high-corrosion resistant sensor material (Alloy)

Phạm vi ứng dụng

Point level switch for all liquids.

  • Process connections: Threads, flanges and hygienic process connection (Tri-Clamp)

  • Temperature: -50 to +150°C (-58 to +302°F)

  • Pressure: -1 to +64bar (-14.5 to +928psi)

  • Sensor material: 316L, Alloy

  • International explosion protection certificates, overfill prevention WHG, SIL, marine approvals

Tín năng và thông số kỹ thuật

Tài liệu / Tài liệu hướng dẫn / Phần mềm

Phụ kiện / Phụ tùng thay thế

Sản phẩm cũ / sản phẩm mới

Người tiền nhiệm: CS1103, CS1113, CS1203, CS1213, CS1603, CS1613, T6256

Density measurement of liquids with Density Computer FML621

Measurement of density, reference density, concentration of liquids in conjunction with a Liquiphant. Also for use in hazardous areas with international explosion protection certificates.
