8-channel transmitter

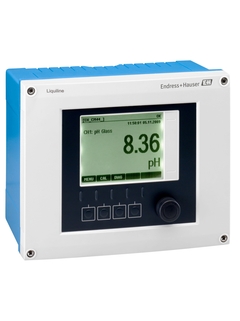

Liquiline CM448

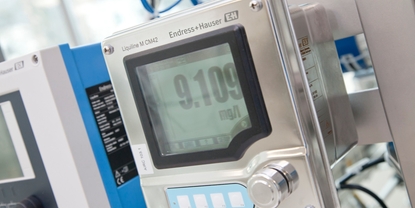

Liquiline CM448 is a state-of-the-art transmitter for pH, ORP, conductivity, oxygen and more. ©Endress+Hauser

Liquiline CM448 is a state-of-the-art transmitter for pH, ORP, conductivity, oxygen, chlorine, turbidity, sludge level, SAC, nitrate and many other parameters.

Heartbeat Technology offers diagnostics, verification and monitoring of the measuring point. ©Endress+Hauser

Liquiline transmitters with Heartbeat Technology offer status-oriented maintenance and easy verification of the measuring point and help you to carry out optimization measures.

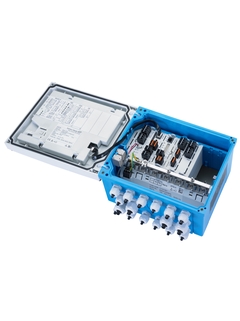

The transmitter's modular design allows you to easily add functionality at any time. ©Endress+Hauser

Stay flexible with the Liquiline CM448 transmitter: its modular design allows you to easily add functionality at any time (e.g. digital fieldbuses, relays, etc.).

Memosens converts the measured value to a digital signal and transfers it to the transmitter without a contacting connection. This video shows how Memosens optimizes process control and maintenance.

  • Liquiline CM448 is a state-of-the-art transmitter for pH, ORP, conductivity, oxygen and more.
  • Heartbeat Technology offers diagnostics, verification and monitoring of the measuring point.
  • The transmitter's modular design allows you to easily add functionality at any time.

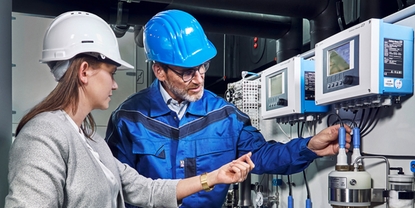

Flexible multiparameter field device for all industries

Liquiline CM448 is a digital multiparameter transmitter for process monitoring and controlling in any application. The 8-channel controller saves you time and money by offering seamless system integration, simple operation and a reduced need for spare part stock. Adapt the controller exactly to your measuring task and connect 1 to 8 sensors as desired. Liquiline CM448 provides you with all the benefits of a best-in-class transmitter platform from clever simplicity to maximum process safety.

Lựa chọn Extended
  • F
  • L
  • E
  • X

  • Sản phẩm đơn giản

  • Dễ lựa chọn, cài đặt và vận hành

Công nghệ vượt trội

Đơn giản

  • Sản phẩm tiêu chuẩn

  • Đáng tin cậy, mạnh mẽ và ít bảo trì

Công nghệ vượt trội

Đơn giản

  • Sản phẩm cao cấp

  • Chức năng cao và tiện lợi

Công nghệ vượt trội

Đơn giản

  • Sản phẩm chuyên dụng

  • Dành cho các ứng dụng đòi hỏi cao

Công nghệ vượt trội

Đơn giản

Có thể thay đổi

Lựa chọn FLEX Công nghệ vượt trội Đơn giản
  • F
  • L
  • E
  • X

Lựa chọn Fundamental

Đáp ứng nhu cầu đo lường cơ bản

Công nghệ vượt trội
Đơn giản
  • F
  • L
  • E
  • X

Lựa chọn Lean

Xử lý dễ dàng các quy trình cốt lõi

Công nghệ vượt trội
Đơn giản
  • F
  • L
  • E
  • X

Lựa chọn Extended

Tối ưu hóa quy trình bằng công nghệ tiên tiến

Công nghệ vượt trội
Đơn giản
  • F
  • L
  • E
  • X

Lựa chọn Xpert

Làm chủ các ứng dụng khó khăn nhất

Công nghệ vượt trội
Đơn giản

Có thể thay đổi

  • Tổng quan về thông số kỹ thuật

    • Input

      1 to 8x Memosens digital input
      2x 0/4 to 20mA Input optional
      2 to 4x Digital input optional

    • Output / communication

      2 to 8x 0/4 to 20 mA current outputs, alarmrelay
      4x relay, ProfibusDP, Modbus RS485, Modbus TCP, Ethernet

    • Ingres protection

      IP66 / IP67

Loading alternative products

Chọn nhanh

Chọn theo đề xuất của chúng tôi
Giá bán
    -- selected coding
    -- selected label
    99.999,00
    <%label%>
    -- selected coding
    -- selected label
    99.999,00
    <%feature%>
  • Process Connection
      <%label%>
      99.999,00
      <%label%>
      99.999,00

  • <%message%>

CM448
Hiện chi tiết Ẩn chi tiết
Hiện chi tiết
Quay lại Mục chọn nhanh
  • <%feature%>
    <%coding%>
    <%label%>
pc
Đang tải giá
Giá tạm thời không có sẵn
from CHF 803.-
  • Các add-on tùy chọn
Vui lòng sử dụng công cụ lựa chọn mã thiết bị để tiếp tục.
hoặc

Công cụ lựa chọn mã thiết bị

Tiếp tục lựa chọn từ tất cả tùy chọn có thể

Các thành phần bổ sung

  • Lợi ích

    • Clever simplicity:
      One controller for all parameters and applications, intuitive user interface, automatic sensor recognition, hot plug & play with pre-calibrated Memosens sensors.

    • Complete package:
      8 channels in one device provide the highest...

  • Phạm vi ứng dụng

    The Liquiline CM448 multiparameter transmitter is suitable for all applications in non-hazardous areas, for example in the following industries and their utilities:

    • Food & Beverages

    • Life Sciences

    • Power & Energy

    • Water & Wastewater

    • Chemicals

    ...

Tín năng và thông số kỹ thuật

Quay lại

Details

  • Measuring principle

    Free chlorine

  • Application

    Modular 4 wire controller
    Multichannel: 1 to 8 digital channels for Memosens protocol
    Multiparameter: pH, redox, ISFET, conductivity inductive and conductive, dissolved oxygen, nitrate and turbidity
    8 sensors connectable in any combination
    Functionality modular extendable at any time
    Plug and play for modules and sensors

  • Characteristic

    Robust plastic housing
    All non-ex applications

  • Design

    8x Memosens input, 2 to 8x current output,
    Alarmrelay, 2x relay, SD card for software update and copy & paste of setup

  • Material

    Housing base: PC-FR
    Housing seal EPDM

  • Dimension

    237 x 194 x 162 mm
    9.33 x 7.64 x 6.38 inch

  • Process temperature

    -20 to 55 °C (0 to 130 °F)

  • Input

    1 to 8x Memosens digital input
    2x 0/4 to 20mA Input optional
    2 to 4x Digital input optional

  • Output / communication

    2 to 8x 0/4 to 20 mA current outputs, alarmrelay
    4x relay, ProfibusDP, Modbus RS485, Modbus TCP, Ethernet

  • Additional certifications

    EAC, cCSAus

  • Measuring principle

    Amperometric oxygen measurement

  • Application

    Modular 4 wire controller
    Multichannel: 1 to 8 digital channels for Memosens protocol
    Multiparameter: pH, redox, ISFET, conductivity inductive and conductive, dissolved oxygen, nitrate and turbidity
    8 sensors connectable in any combination
    Functionality modular extendable at any time
    Plug and play for modules and sensors

  • Characteristic

    Robust plastic housing
    All non-ex applications

  • Design

    8x Memosens input, 2 to 8x current output,
    Alarmrelay, 2x relay, SD card for software update and copy & paste of setup

  • Material

    Housing base: PC-FR
    Housing seal EPDM

  • Dimension

    237 x 194 x 162 mm
    9.33 x 7.64 x 6.38 inch

  • Process temperature

    -20 to 55 °C (0 to 130 °F)

  • Input

    1 to 8x Memosens digital input
    2x 0/4 to 20mA Input optional
    2 to 4x Digital input optional

  • Output / communication

    2 to 8x 0/4 to 20 mA current outputs, alarmrelay
    4x relay, ProfibusDP, Modbus RS485, Modbus TCP, Ethernet

  • Additional certifications

    EAC, cCSAus

  • Measuring principle

    Potentiometric / ISE

  • Characteristic

    Robust plastic housing
    All non-ex applications

  • Process temperature

    -20 to 55 °C (0 to 130 °F)

  • Application

    Modular 4 wire controller
    Multichannel: 1 to 8 digital channels for Memosens protocol
    Multiparameter: pH, redox, ISFET, conductivity inductive and conductive, dissolved oxygen, nitrate and turbidity
    8 sensors connectable in any combination
    Functionality modular extendable at any time
    Plug and play for modules and sensors

  • Output / communication

    2 to 8x 0/4 to 20 mA current outputs, alarmrelay
    4x relay, ProfibusDP, Modbus RS485, Modbus TCP, Ethernet

  • Input

    1 to 8x Memosens digital input
    2x 0/4 to 20mA Input optional
    2 to 4x Digital input optional

  • Measuring principle

    Potentiometric

  • Application

    Modular 4 wire controller
    Multichannel: 1 to 8 digital channels for Memosens protocol
    Multiparameter: pH, redox, ISFET, conductivity inductive and conductive, dissolved oxygen, nitrate and turbidity
    8 sensors connectable in any combination
    Functionality modular extendable at any time
    Plug and play for modules and sensors

  • Characteristic

    Robust plastic housing
    All non-ex applications

  • Design

    8x Memosens input, 2 to 8x current output,
    Alarmrelay, 2x relay, SD card for software update and copy & paste of setup

  • Material

    Housing base: PC-FR
    Housing seal EPDM

  • Dimension

    237 x 194 x 162 mm
    9.33 x 7.64 x 6.38 inch

  • Ingres protection

    IP66 / IP67

  • Input

    1 to 8x Memosens digital input
    2x 0/4 to 20mA Input optional
    2 to 4x Digital input optional

  • Output / communication

    2 to 8x 0/4 to 20 mA current outputs, alarmrelay
    4x relay, ProfibusDP, Modbus RS485, Modbus TCP, Ethernet

  • Additional certifications

    EAC, cCSAus

  • Measuring principle

    Potentiometric

  • Application

    Modular 4 wire controller
    Multichannel: 1 to 8 digital channels for Memosens protocol
    Multiparameter: pH, redox, ISFET, conductivity inductive and conductive, dissolved oxygen, nitrate and turbidity
    8 sensors connectable in any combination
    Functionality modular extendable at any time
    Plug and play for modules and sensors

  • Characteristic

    Robust plastic housing
    All non-ex applications

  • Design

    8x Memosens input, 2 to 8x current output,
    Alarmrelay, 2x relay, SD card for software update and copy & paste of setup

  • Material

    Housing base: PC-FR
    Housing seal EPDM

  • Dimension

    237 x 194 x 162 mm
    9.33 x 7.64 x 6.38 inch

  • Process temperature

    -20 to 55 °C (0 to 130 °F)

  • Ingres protection

    IP66 / IP67

  • Input

    1 to 8x Memosens digital input
    2x 0/4 to 20mA Input optional
    2 to 4x Digital input optional

  • Output / communication

    2 to 8x 0/4 to 20 mA current outputs, alarmrelay
    4x relay, ProfibusDP, Modbus RS485, Modbus TCP, Ethernet

  • Additional certifications

    EAC, cCSAus

  • Measuring principle

    Single beam scattered light

  • Application

    Modular 4 wire controller
    Multichannel: 1 to 8 digital channels for Memosens protocol
    Multiparameter: pH, redox, ISFET, conductivity inductive and conductive, dissolved oxygen, nitrate and turbidity
    8 sensors connectable in any combination
    Functionality modular extendable at any time
    Plug and play for modules and sensors

  • Characteristic

    Robust plastic housing
    All non-ex applications

  • Design

    8x Memosens input, 2 to 8x current output,
    Alarmrelay, 2x relay, SD card for software update and copy & paste of setup

  • Material

    Housing base: PC-FR
    Housing seal EPDM

  • Dimension

    237 x 194 x 162 mm
    9.33 x 7.64 x 6.38 inch

  • Process temperature

    -20 to 55 °C (0 to 130 °F)

  • Ingres protection

    IP66 / IP67

  • Input

    1 to 8x Memosens digital input
    2x 0/4 to 20mA Input optional
    2 to 4x Digital input optional

  • Output / communication

    2 to 8x 0/4 to 20 mA current outputs, alarmrelay
    4x relay, ProfibusDP, Modbus RS485, Modbus TCP, Ethernet

  • Additional certifications

    EAC, cCSAus

  • Measuring principle

    Sensor ORP / Redox

  • Application

    Modular 4 wire controller
    Multichannel: 1 to 8 digital channels for Memosens protocol
    Multiparameter: pH, redox, ISFET, conductivity inductive and conductive, dissolved oxygen, nitrate and turbidity
    8 sensors connectable in any combination
    Functionality modular extendable at any time
    Plug and play for modules and sensors

  • Characteristic

    Robust plastic housing
    All non-ex applications

  • Design

    8x Memosens input, 2 to 8x current output,
    Alarmrelay, 2x relay, SD card for software update and copy & paste of setup

  • Material

    Housing base: PC-FR
    Housing seal EPDM

  • Dimension

    237 x 194 x 162 mm
    9.33 x 7.64 x 6.38 inch

  • Process temperature

    -20 to 55 °C (0 to 130 °F)

  • Ingres protection

    IP66 / IP67

  • Input

    1 to 8x Memosens digital input
    2x 0/4 to 20mA Input optional
    2 to 4x Digital input optional

  • Output / communication

    2 to 8x 0/4 to 20 mA current outputs, alarmrelay
    4x relay, ProfibusDP, Modbus RS485, Modbus TCP, Ethernet

  • Additional certifications

    EAC, cCSAus

Tài liệu / Tài liệu hướng dẫn / Phần mềm

Phụ kiện / Phụ tùng thay thế

Nr
Order code
Specification
  • 7
    • Nr 7 Order code 71141336

      Kit base module BASE-E

      2x 0/4..20 mA out, alarm relay 2x digital sensor, with connection cable CM444/CM448

    • Order code 71431302

      Kit: base module BASE2-E

      CM44: backplane version 2 and min. firmware 01.07.00 needed. CSFxx: backplane version 2 and min. firmware 01.07.03 needed. CA80: backplane version 2, interface module version 2, control module version 2 and min. firmware 01.08.00 needed.

  • 14
    • Nr 14 Order code 71272410

      Kit: module ETH

      (+Webserver) extendable via upgrade code to Modbus TCP or EtherNet/IP CM442/CM444/CM448/CSF48 CM442R/CM444R/CM448R

  • 14
  • 9
  • 5
  • 2
  • 1
  • 10,12
    • Nr 10,12 Order code 71101765

      Kit: mechanical inner housing parts

      Cable mounting rail with double clamps Insert side panels CM442/CM444/CM448

  • 15
  • 6,13
  • 16
    • Order code 71140892

      Kit M12 ext.jack ProfibusDP/Modbus RS485

      B-coded, fully assembled CM442/CM444/CM448/CSF48

    • Order code 71140893

      Kit: M12 external jack for Ethernet

      D-coded, fully assembled CM442/CM444/CM448/CSF48

    • Order code 71128428

      Upgrade code: HART

      digital communication (provide serial number of device) CM442 / CM444 / CM448 / CSF48 CM442R / CM444R / CM448R Successor: XPC0023 Activation code HART

    • Order code 71135635

      Upgrade code: Profibus DP module 485

      Enter this code to change active fieldbus protocol to Profibus DP (provide serial number of device) CM442 / CM444 / CM448 / CSF48 CM442R / CM444R / CM448R Successor kit: Activation code PROFIBUS DP f 485 module

    • Order code 71135636

      Upgrade code: Modbus RS 485 module 485

      Enter this code to change active fieldbus protocol to Modbus RS485 (provide serial number of device) CM442 / CM444 / CM448 / CSF48 CM442R / CM444R / CM448R Successor kit: XPC0025 Activation code ModbusRS485 f 485 module

    • Order code 71135637

      Upgrade code: Modbus TCP f.module 485

      Enter this code to change active fieldbus protocol to Modbus TCP (provide serial number of device) CM442 / CM444 / CM448 / CSF48 CM442R / CM444R / CM448R Successor Kit: XPC0020 activation code Modbus TCP + Webserver

    • Order code 71140891

      Upgrade code: 2x 0/4..20mA Output

      for module BASE-E (provide serial number of device) CM444 / CM448 / CM444R / CM448R Successor kit: XPC0026 activation code Liquiline input /outputs

    • Order code 71211288

      Upgrade code: Feedforward control

      Upgrade code: Feedforward control requires 0/4..20mA Input or digital communication (provide serial number of device) CM442/CM444/CM448/CSF48 CM442R/CM444R-CM448R

    • Order code 71211289

      Upgrade code: Measuring Range Switch

      Upgrade code: Measuring Range Switch requires digital Input or digital communication (provide serial number of device CM442/CM444/CM448/CSF48 CM442R/CM444R/CM448R

    • Order code 71219871

      Upgrade code: EtherNet/IP f.module 485

      Enter this code to change active fieldbus protocol to EtherNet/IP (provide serial number of device) CM442/CM444/CM448/CSF48 CM442R/CM444R/CM448R Successor kit: XPC0018 activation code EtherNet/IP + Webserver

    • Order code 71279813

      Upgrade code Modbus TCP f.module ETH

      Enter this code to change active fieldbus protocol to Modbus TCP (provide serial number of device) CM442/CM444/CM448/CSF48 CM442R/CM444R/CM448R Successor kit: XPC0020 activation code Modbus TCP + Webserver

    • Order code 71279830

      Upgrade code EtherNet/IP f. module ETH

      Enter this code to change active fieldbus protocol to EtherNet/IP (provide serial number of device) CM442/CM444/CM448/CSF48 CM442R/CM444R/CM448R Successor kit: XPC0018 activation code EtherNet IP + Webserver

    • Order code 71239104

      Upgrade code: Chemoclean Plus

      requires relays or digital outputs or digital fieldbus communication and optional digital inputs (provide serial number of device) CM442/CM444/CM448/CSF48 CM442R/CM444R/CM448R

    • Order code 71367524

      Upgradecode Heartbeat Verifi.+Monitoring

      (provide serial number of device) CM442/CM444/CM448/CSF48/CA80 CM442R/CM444R/CM448R

    • Order code 71367541

      Upgradecode Mathematic

    • Order code 71449914

      Upgr.code:EtherNet/IP+Webserver BASE2

      Successor kit: Kit: XPC0018 activation code EtherNet/IP + Webserver

    • Order code 71449915

      Upgr.code Modbus TCP+Webserver BASE2

      Successor kit: XPC0020 activation code Modbus TCP + Webserver

    • Order code 71449918

      Upgrade code: Webserver for BASE2

      Successor kit: XPC0021 activation code Webserver for BASE2

    • Order code 71449901

      Upgr.code: PROFINET+Webserver f. BASE2

      Successor kit: XPC0022 activation code PROFINET + Webserver

    • Order code 71110815

      SD-Card, 1GB, Industrial Flash Drive

      .

    • Order code 71127100

      SD-Card with Firmware, 1GB

      Industrial Flash Drive, Liquiline firmware for 4-wire platform CM442 / CM444 / CM448 / CSF48

    • Order code 51517507

      Kit: external CDI jack complete

      Retrofit for CDI-interface connection, with ready-made cable ends. CM42 / CM442 / CM444 / CM448 / CSF48

    • Order code XPRFID-

      Spare RFID TAG

      Consists of: RFID TAG, fixing wire, crimp sleeve.

    • Order code CYY101-A

      Stainless steel 1.4301, 320x300x270mm

    • Order code 71092051

      Velco cable connector, 4 pieces

      4 pieces, for sensor cable

    • Order code 71096920

      Pipe mounting kit CM442/CM444/CM448

    • Order code DIENST-F

      Marking Tagging (Attention: select option and enter text in 995)

Tải

Câu chuyện thành công

So sánh các sản phẩm
Trang web này sử dụng cookie. Để tiếp tục duyệt trang web, bạn sẽ đồng ý các điều khoản sử dụng cookie. Tìm hiểu thêm tại đây

Vui lòng chọn thị trường / khu vực của bạn

Đi đến thị trường / khu vực được chọn
