Analog pH sensor
Orbipore CPS91

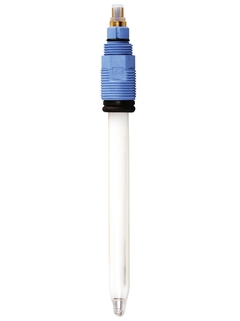

Orbipore CPS91 - Analog glass pH electrode for heavily soiled media

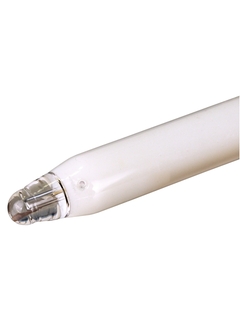

Orbipore CPS91 - Detail view open aperture

The pH-value of a liquid can be calculated using the potentiometric measurement principle. This video shows what it is about and how this measuring principle works.

Glass electrode for heavily polluted media in chemical processes, paper or paint production

Orbipore CPS91 is the analog specialist for pH measurement in fibrous media or media with a high content of suspended solids such as dispersions, precipitation reactions or emulsions. The open aperture prevents fouling and guarantees you the most reliable measurement under extreme process conditions.

Định cỡ
Định giá sau khi đăng nhập và lập cấu hình

So sánh

Lựa chọn nhanh

Chọn trong số các tùy chọn do chúng tôi đề xuất

<%label%>
-- selected coding

-- selected label
<%label%>
Looking for more options? Please use the individual configurator to continue.
<%feature%>
-- selected coding

-- selected label
<%feature%>
<%coding%>

<%label%>

Looking for more options? Please use the individual configurator to continue.
Process Connection
<%coding%>

<%label%>

<%coding%>

<%label%>

<%message%>

Các add-on tùy chọn

Please use the individual configurator to continue.

hoặc

Cấu hình riêng

Tiếp tục lựa chọn từ tất cả các tùy chọn có thể

Cấu hình

Các thành phần bổ sung

pH/ORP transmitter
Liquisys CPM223

Compact panel device for all industries
Thông tin bổ sung
So sánh
pH/ORP transmitter
Liquisys CPM253

Compact field device for all industries
Thông tin bổ sung
So sánh
1-channel transmitter
Liquiline M CM42

Two-wire field device for hazardous and non-hazardous area use in chemicals, life sciences and food
Thông tin bổ sung
So sánh
pH buffers
CPY20

Highly precise pH buffers for all industries
Thông tin bổ sung
So sánh

Lợi ích
Open aperture for application in heavily soiled media
Low maintenance and long service life due to stabilized gel filling
Not affected by fluctuations in pressure and temperature

Phạm vi ứng dụng
Chemical processes
Pulp and paper industry
Contaminated media and suspended solids
- Dispersions
- Precipitation
- Emulsions

With ATEX, FM, and CSA approval for application in hazardous areas.

Tín năng và thông số kỹ thuật

Quay lại

Details

Measuring principle

Glass electrode
Application

- Process applications - media with high contamination: emulsions, suspensions, precipitation reactions - min. conductivity >500µS/cm.
Characteristic

- rapid response - new, stabilised gel insensitive to contaminations
Measurement range

pH 0-14
Measuring principle

- Open aperture - double gel reference
Design

- all shaft lengths with temperature sensor - advanced gel technology
Material

Glass
Dimension

Diameter: 12 mm (0.46 inch)
Shaft lengths: 120, 225, 360 and 425 mm
(4.68, 8.77, 14.04 and 16,57 inch)
Process temperature

max. 110°C
(230°F)
Process pressure

max. 10 bar
(145 psi)
Temperature sensor

Optional with integrated Pt100 or Pt1000.
Ex certification

Simple operational equipment, no certification necessary.
Connection

TOP68 plug-in head
Ingres protection

IP68
