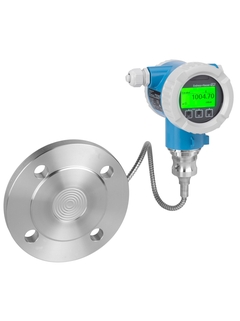

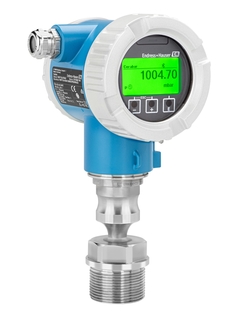

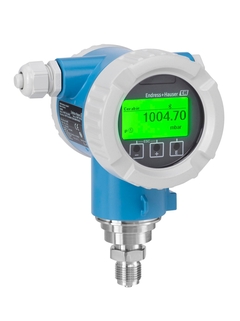

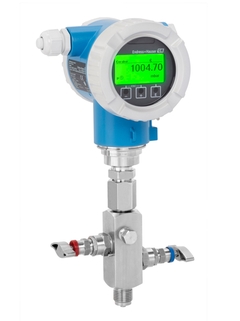

Cerabar PMP71B - pressure transmitter

Cerabar PMP71B - pressure transmitter ©Endress+Hauser

Verification of a pressure transmitter within 3 minutes - while the process is running? Learn more in this video.

Cerabar PMP71B - pressure transmitter ©Endress+Hauser
Cerabar PMP71B - pressure transmitter ©Endress+Hauser
Cerabar PMP71B - pressure transmitter ©Endress+Hauser

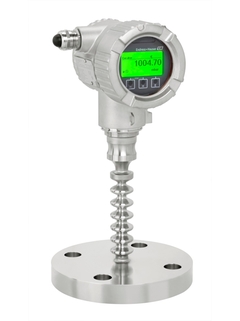

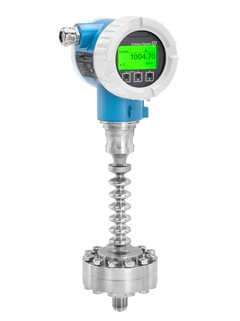

With temperature decoupler

Cerabar PMP71B - pressure transmitter ©Endress+Hauser

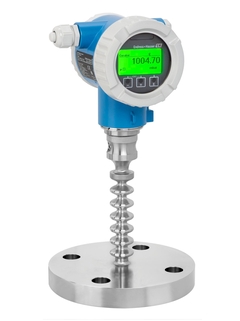

With temperature decoupler and stainless steel housing

  • Cerabar PMP71B - pressure transmitter
  • Cerabar PMP71B - pressure transmitter
  • Cerabar PMP71B - pressure transmitter
  • Cerabar PMP71B - pressure transmitter
  • Cerabar PMP71B - pressure transmitter

Smart pressure transmitter - its health can be verified without process interruption

This transmitter belongs to the new Cerabar generation. The transmitter is robust and can be remotely controlled via app on a mobile device using a secure Bluetooth connection.
The software is designed to simplify the handling. Intuitive wizards guide the user through setup, proof tests and verification of the device.
Heartbeat Technology offers verification and monitoring functions to detect unwanted anomalies e.g. changes in loop characteristics.

Lựa chọn Extended
  • F
  • L
  • E
  • X

  • Sản phẩm đơn giản

  • Dễ lựa chọn, cài đặt và vận hành

Công nghệ vượt trội

Đơn giản

  • Sản phẩm tiêu chuẩn

  • Đáng tin cậy, mạnh mẽ và ít bảo trì

Công nghệ vượt trội

Đơn giản

  • Sản phẩm cao cấp

  • Chức năng cao và tiện lợi

Công nghệ vượt trội

Đơn giản

  • Sản phẩm chuyên dụng

  • Dành cho các ứng dụng đòi hỏi cao

Công nghệ vượt trội

Đơn giản

Có thể thay đổi

Lựa chọn FLEX Công nghệ vượt trội Đơn giản
  • F
  • L
  • E
  • X

Lựa chọn Fundamental

Đáp ứng nhu cầu đo lường cơ bản

Công nghệ vượt trội
Đơn giản
  • F
  • L
  • E
  • X

Lựa chọn Lean

Xử lý dễ dàng các quy trình cốt lõi

Công nghệ vượt trội
Đơn giản
  • F
  • L
  • E
  • X

Lựa chọn Extended

Tối ưu hóa quy trình bằng công nghệ tiên tiến

Công nghệ vượt trội
Đơn giản
  • F
  • L
  • E
  • X

Lựa chọn Xpert

Làm chủ các ứng dụng khó khăn nhất

Công nghệ vượt trội
Đơn giản

Có thể thay đổi

  • Tổng quan về thông số kỹ thuật

    • Accuracy

      Standard:
      up to 0.05 %
      Platinum:
      up to 0.025 %

    • Process temperature

      Standard:
      -40°C…+125°C
      (-40°F…+257°F)

      Diaphragm seal:
      -40°C...+400°C
      (-40°F...+752°F)

    • Pressure measuring range

      400 mbar...700 bar
      (1.5 psi...10,500 psi)

    • Main wetted parts

      316L, AlloyC,
      Tantal, Monel,
      PTFE, Gold

    • Material process membrane

      316L, AlloyC,
      Tantal, Monel,
      PTFE,
      Gold

    • Measuring cell

      400 mbar...700 bar
      (6 psi...10,500 psi)

Loading alternative products

Chọn nhanh

Chọn theo đề xuất của chúng tôi
Giá bán
    -- selected coding
    -- selected label
    99.999,00
    <%label%>
    -- selected coding
    -- selected label
    99.999,00
    <%feature%>
  • Process Connection
      <%label%>
      99.999,00
      <%label%>
      99.999,00

  • <%message%>

PMP71B
Hiện chi tiết Ẩn chi tiết
Hiện chi tiết
Quay lại Mục chọn nhanh
  • <%feature%>
    <%coding%>
    <%label%>
pc
Đang tải giá
Giá tạm thời không có sẵn
from CHF 803.-
  • Các add-on tùy chọn
Vui lòng sử dụng công cụ lựa chọn mã thiết bị để tiếp tục.
hoặc

Công cụ lựa chọn mã thiết bị

Tiếp tục lựa chọn từ tất cả tùy chọn có thể

  • Lợi ích

    • With Heartbeat Technology you are able to verify the health of the device while the process is running.

    • Simple indication of device status - display changes from green to red when diagnostic messages occur

    • Reduce systematic failures - error free SIL...

  • Phạm vi ứng dụng

    • Pressure measuring range: up to 700 bar (10500 psi)

    • Process temperatures up to 400°C (752 °F) with diaphragm seal

    • Accuracy: up to +/- 0.025%

Tín năng và thông số kỹ thuật

Quay lại

Details

  • Measuring principle

    Absolute and gauge pressure

  • Characteristic

    Pressure transmitter with metallic process diaphragm.

    Available with diaphragm seals.

    Device health verification without process interruptions.

    Intuitive and clear wizards for commissioning, proof tests and verification.

  • Supply voltage

    4...20 mA HART

    Ex d, Ex e, non-Ex:

    10.5...35V DC :

    Ex i: 10.5...30V DC

  • Reference Accuracy

    Standard:

    up to 0.05 %

    Platinum:

    up to 0.025 %

  • Long term stability

    0.05 % of URL/ year

    0.07 % of URL/ 5 years

    0.10 % of URL/ 10 years

  • Process temperature

    Standard:

    -40°C…+125°C

    (-40°F…+257°F)


    Diaphragm seal:

    -40°C...+400°C

    (-40°F...+752°F)

  • Ambient temperature

    -60°C...+80°C
    (-76°F...+185°F)

  • Measuring cell

    400 mbar...700 bar
    (6 psi...10,500 psi)

  • Smallest calibratable span

    5 mbar (0.075 psi)

  • Vacuum resistance

    5 mbar (0.725 psi)

  • Max. Turn down

    100:1

  • Max. overpressure limit

    2,800 bar (40,600 psi)

  • Process connection

    Thread:

    G1/2...G2, R1/2, MNPT3/4...MNPT2,

    FNPT1/2, R1/2

    Flange:

    DN25...DN100,

    NPS 1"...4"

    Pancake: 2"...4", DN50...DN100

  • Material process membrane

    316L, AlloyC,

    Tantal, Monel,
    PTFE,

    Gold

  • Material gasket

    PTFE

  • Fill fluid

    Silicone oil, Inert oil,

    Vegetable oil,

    High/ low temperature oil

  • Material housing

    Aluminium,

    316L

  • Communication

    4...20 mA HART

  • Certificates / Approvals

    ATEX, IEC Ex, CSA C/US, NEPSI

  • Safety approvals

    SIL

  • Design approvals

    EN10204-3.1,

    NACE MR0103,

    NACE MR0175

  • Marine approvals

    Marine approvals

  • Drinking water approvals

    NSF

  • Specialities

    Heartbeat Technology,

    Bluetooth® Operation and maintenance SmartBlue App,

    LED Module,

    RFID TAG for easy identification,

    Plug and play functionalities,

    HistoROM

  • Measuring principle

    Absolute and gauge pressure

  • Characteristic / Application

    Pressure transmitter with metallic process diaphragm.

    Available with diaphragm seals.

    Device health verification without process interruptions.

    Intuitive and clear wizards for commissioning, proof tests and verification.

  • Specialities

    Heartbeat Technology,

    Bluetooth® Operation and maintenance SmartBlue App,

    LED Module,

    RFID TAG for easy identification,

    Plug and play functionalities,

    HistoROM

  • Supply / Communication

    Ex d, Ex e, non-Ex:

    10.5...35V DC

    Ex i: 10.5...30V DC

  • Accuracy

    Standard:

    up to 0.05 %

    Platinum:

    up to 0.025 %

  • Long term stability

    0.05 % of URL/ year

    0.07 % of URL/ 5 years

    0.10 % of URL/ 10 years

  • Ambient temperature

    -60°C...+80°C

    (-76°F...+185°F)

  • Process temperature

    Standard:

    -40°C…+125°C

    (-40°F…+257°F)


    Diaphragm seal:

    -40°C...+400°C

    (-40°F...+752°F)

  • Process pressure absolute / max. overpressure limit

    700 bar

    (10,500 psi)

  • Pressure measuring range

    400 mbar...700 bar

    (1.5 psi...10,500 psi)

  • Main wetted parts

    316L, AlloyC,

    Tantal, Monel,

    PTFE, Gold

  • Process connection

    Thread:

    G1/2...G2, R1/2, MNPT3/4...MNPT2,

    FNPT1/2, R1/2

    Flange:

    DN25...DN100,

    NPS 1"...4"

    Pancake: 2"...4", DN50...DN100

  • Max. measurement distance

    7000 m (22,966 ft) H2O

  • Communication

    4...20 mA HART

  • Certificates / Approvals

    ATEX, IEC Ex, CSA C/US, NEPSI

  • Safety approvals

    SIL

  • Design approvals

    EN 10204-3.1

    NACE MR0175,

    NACE MR0103

  • Marine approval

    Marine approval

  • Drinking water approvals

    NSF

  • Metrological approvals and certificates

    MID

  • Options

    Touch control display

    Diaphragm seal

  • Application limits

    Measuring cell: Metal
    welded
    If pressurized, possibly
    use differential pressure
    measurement with two
    pressure transmitters
    (electronic dp). Observe
    ratio head pressure:
    hydrostatic pressure

Tài liệu / Tài liệu hướng dẫn / Phần mềm

Phụ kiện / Phụ tùng thay thế

Nr
Order code
Specification
  • 14
    • Nr 14 Order code 71487198

      Blind plug, M20, 316L, o-ring EPDM

      Consists of: blind plug, o-ring PTFE coated 17.0x2.0. Usage: FMG50, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B, NMT81.

    • Nr 14 Order code 71487199

      Blind plug, M20, Alu, o-ring EPDM

      Consists of: blind plug, o-ring PTFE coated 17.0x2.0. Usage: FMG50, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B, NMT81.

    • Nr 14 Order code 71487201

      Blind plug, NPT1/2, Alu

      Consists of: blind plug, PTFE coated. Usage: FMG50, NMT81, PMC51B, PMC71B PMD55B, PMD75B/PMD78B, PMP51B, PMP71B.

    • Nr 14 Order code 71487203

      Blind plug, NPT1/2, 316L

      Consists of: blind plug, PTFE coated. Usage: FMG50, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B, NMT81.

  • 15
    • Nr 15 Order code 71435135

      Cable gland M20, plastic

      Usage: FMG50, FTL41, FTL51B, FTL62/64, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B.

    • Nr 15 Order code 71435136

      Cable gland M20, brass nickel plated

      Usage: FMG50, FTL41, FTL51B, FTL62/64, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B.

    • Nr 15 Order code 71435137

      Cable gland M20, 316L

      Usage: FMG50, FTL51B, FTL62/64, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B.

    • Nr 15 Order code 71440660

      Adapter set M20x1.5-G1/2, Alu

      Usage: FTL41, FTL51B, FTL62/64, FMG50, PMC51B, PMP51B, PMC71B, PMP71B, PMD55B, PMD75B, PMD78B.

    • Nr 15 Order code 71440667

      Adapter set M20x1.5-G1/2, 316L

      Usage: FTL41, FTL51B, FTL62/64, FMG50, PMC51B, PMP51B, PMC71B, PMP71B, PMD55B, PMD75B, PMD78B.

    • Nr 15 Order code 71435138

      M12 plug,CuZn-nickel plated,housing side

      Usage: M12 screw-in thread, brass nickel plated, FMG50, FTL51B, FTL62/FTL64, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B,PMP51B, PMP71B.

    • Nr 15 Order code 71435139

      M12 plug, 316L, housing side

      Usage: M12 screw-in thread, FMG50, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B.

    • Nr 15 Order code 71439098

      HAN7D plug, 90deg, housing side

      Usage: FMG50, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B.

  • 20
    • Nr 20 Order code 71435116

      Cover, Alu, closed

      Sealing ring, HNBR. Usage: FMG50, FTL41, FTL51B, FTL62/64, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B,PMP51B, PMP71B.

    • Nr 20 Order code 71435118

      Cover, Alu, closed, Ex d

      Sealing ring, HNBR. Usage: FMG50, FTL41, FTL51B, FTL62/64, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B.

    • Nr 20 Order code 71435121

      Cover, Alu, connection compartment, Ex d

      Sealing ring, HNBR. Usage: FMG50, PMC71B, PMD75B/PMD78B, PMP71B.

    • Nr 20 Order code 71435122

      Cover, 316L, closed, Ex d

      Sealing ring, HNBR. Usage: FMG50, FTL51B, FTL62/64, PMD75B/PMD78B, PMC71B, PMP71B.

    • Nr 20 Order code 71435123

      Cover, 316L, sight window, Ex d

      Sealing ring, HNBR. Usage: FMG50, FTL51B, FTL62/FTL64, PMD75B/PMD78B, PMC71B, PMP71B.

    • Nr 20 Order code 71435128

      Cover, 316L, connect. compartment, Ex d

      Sealing ring, HNBR. Usage: FMG50, PMD75B/PMD78B, PMC71B, PMP71B.

    • Nr 20 Order code 71439085

      Cover, Alu, connection compartment

      Sealing ring, HNBR. Usage: FMG50, PMC71B, PMD75B/PMD78B, PMP71B.

    • Nr 20 Order code 71439086

      Cover red, Alu, closed, Ex d

      Sealing ring, HNBR. Usage: FMG50, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP1B, PMP71B.

    • Nr 20 Order code 71439087

      Cover red, Alu,connect. compartment,Ex d

      Sealing ring, HNBR. Usage: FMG50, PMC71B, PMD75B/PMD78B, PMP71B.

    • Nr 20 Order code 71439088

      Cover red, Alu, sight window, Ex d

      Sealing ring, HNBR. Material sight window: borosilicat. Usage: FMG50, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B.

    • Nr 20 Order code 71439089

      Cover, Alu, sight window

      Sealing ring, HNBR. Material sight window: plastic. Usage: FMG50, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B.

    • Nr 20 Order code 71439090

      Cover, Alu, sight window, Ex d

      Sealing ring: HNBR. Material sight window: borosilicat. Usage: FMG50, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B.

  • 21
  • 31
  • 35
  • 40
    • Nr 40 Order code 71435772

      Segment display VU100

      W/o buttons. Usage: FMG50, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B, NMT81.

  • 30
  • 40
  • 56
    • Nr 56 Order code 71518699

      Screw set, screwed separator

      Consists of: 4x nut M8, 4x screw M8x40. Usage: FMD78, PMD78B, PMP55, PMP71B, PMP75.

  • 57
  • 50
  • 70
    • Nr 70 Order code 71043886

      Cable PE, L=2m/80inch, separate housing

      Connection cable sensor>sep. housing. Usage: FMB50/FMB51/FMB52, FMB70, FMD76/FMD77/FMD78, PMC51, PMC71, PMD70/PMD75, PMP51/PMP55, PMP71/PMP75.

    • Nr 70 Order code 71043888

      Cable PE, L=5m/200inch, separate housing

      Connection cable sensor>sep. housing. Usage: FMB50/FMB51/FMB52, FMB70, FMD76/FMD77/FMD78, PMC51, PMC71, PMD70/PMD75, PMP51/PMP55, PMP71/PMP75.

    • Nr 70 Order code 71043889

      Cable PE, L=10m/400inch,separate housing

      Connection cable sensor>sep. housing. Usage: FMB50/FMB51/FMB52, FMB70, FMD76/FMD77/FMD78, PMC51, PMC71, PMD70/PMD75, PMP51/PMP55, PMP71/PMP75.

    • Nr 70 Order code 71070738

      Cable FEP, L=5m/200inch,separate housing

      Connection cable sensor>sep. housing. Usage: FMB50/FMB51/FMB52, FMB70, FMD76/FMD77/FMD78, PMC51, PMC71, PMD70/PMD75, PMP51/PMP55, PMP71/PMP75.

    • Order code 71474958

      HAN7D socket, cable side

      Usage: FMG50, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B.

    • Order code 71102216

      Mountingset Cerabar,Deltapilot,Levelflex

      Material: 316L. Usage: wall/pipe mounting (2"), FMB50/FMB51/FMB52/FMB53, FMB70, FMP50/FMP51/FMP52/FMP53/FMP54/FMP55/ FMP56/FMP57, PMC51, PMC71, PMP51/PMP55, PMP71/PMP75.

    • Order code 71372498

      Mounting bracket 2 valve,stainless steel

      Mounting set Manifold. Material: 316L. Consists of: 1x Mounting bracket. 1x U-bolts. 2x Washers A 8.4. 2x Hexagon nuts M8. Usage: wall/pipe mounting 2", DA63M, PMC51, PMC71, PMP51, PMP71.

    • Order code 71438291

      Weather protection cover, plastic, XW111

      Usage: FTL41, FTL51B, FTL62/FTL64, PMC51B, PMD55B, PMP51B, QWX43.

    • Order code 71438303

      Weather protection cover, 316L, XW112

      Usage: FMG50, FTL51B, FTL62/FTL64, PMC71B, PMD75B/PMD78B, PMP71B.

So sánh các sản phẩm
Trang web này sử dụng cookie. Để tiếp tục duyệt trang web, bạn sẽ đồng ý các điều khoản sử dụng cookie. Tìm hiểu thêm tại đây

Vui lòng chọn thị trường / khu vực của bạn

Đi đến thị trường / khu vực được chọn
