Point level detection

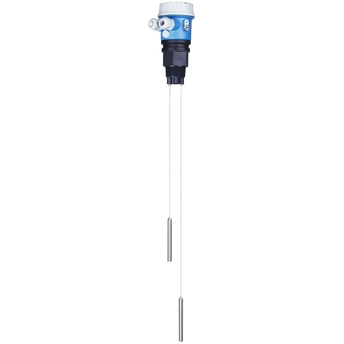

Rope probe for multipoint detection for up to 5 switch points
The Liquipoint FTW32 offers simple and safe point level detection in conductive liquids. It offers numerous measuring possibilities due to multipoint detection (up to 5 rods).
Cost-effective probe for conductive liquids with detection of up to five point levels with one probe
No calibration required
Standard setting for the most common conductive liquids
No moving parts in the tank - long service life, reliable operation with...
Phạm vi ứng dụng
For use in conductive liquids (as of 10μS/cm). For overfill prevention, dry running protection,
two-point control of pumps or multiple point detection.
Process connections: Threads
Sensor length: 0.25 to 15m (10 to 590")
Temperature: -40 to 70°C (-40...
Tài liệu / Tài liệu hướng dẫn / Phần mềm
Phụ kiện / Phụ tùng thay thế
Unit is not repairable.
Order code 52017268
Cover F24, PBT (FTW31/32), gasket
Usage: version without electronics.
Order code 52025606
Cover F16 grey, PBTP, gasket
Gasket EPDM. Usage: housing F16 Polyester, FMI21, FMI51/FMI52, FMU30, FTI51/FTI52/ FTI55/FTI56, FTI77, FTL50/FTL51/FTL51C/ FTL51H, FTL70/FTL71, FTL80/FTL81/FTL85, FTW31/FTW32.
Order code 52004137
O-ring 71.0x3.55 EPDM, 5 pieces
Usage: cover, housing F16, Polyester.
Order code 52017271
Usage: point level switch, conductive, FTW31/FTW32. Output PNP 10.8-45VDC.
Order code 52017272
Usage: point level switch, conductive, FTW31/FTW32. Output relay 20-253VAC, 20-55VDC.
Order code 52017273
Usage: point level switch, conductive, FTW31/FTW32. Output NAMUR.
Order code 52026734
Cable monitoring board
Order code 52017269
Weight FTW32, SS, 3 pieces
Material: 316L. Usage: FTW32.
Order code 71127760
Protection cover F16 housing
Usage: FDR56, FMI21, FMI51/FMI52, FQR56, FTI51/FTI52/FTI55/FTI56, FTI77, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL70/FTL71, FTL80/FTL81/FTL85, FTM20/FTM21, FTM50/FTM51/FTM52, FTR20, FTW31/FTW32/FTW33.
Nr 57 Order code 52014047
Sealing ring G1-1/2, 48x55 FA, 5 pcs.
Process gasket DIN7603-A. Usage: process connection, FMI21, FMI51/FMI52, FTI51/FTI52, FTI55, FTW31/FTW32, FMP51/FMP57, FMR60/FMR62/FMR67, Sliding sleeve G1-1/2 316L (52003665), 316L,3.1 (52011882), FTL51, FTL71,FTL81, AlloyC4 (52003666), FTL51, FTL71.
Order code 52014146
Mounting nut G1-1/2
Hexagon, SW60. Usage: Liquipoint T, Liquicap T, Prosonic M FMU40, Prosonic T FMU30, FMR10, FMR20.
