Absolute and
gauge pressure
Ceraphant PTP33B

Ceraphant PTP33B - Absolute and gauge pressure

Pressure measuring principle

Cost-effective pressure switch with fully welded metal sensor for use in hygienic applications

The Ceraphant PTP33B is a price-attractive pressure switch with metal diaphragm for safe measurement and monitoring of absolute and gauge pressure. The pressure switch with compact design is extremely stable and overload resistant. PTP33B with stainless steal housing is 3-A and EHEDG approved. The IO-Link capability allows easy integration and parametrization of the device.

Thêm vào giỏ hàng
Đặt cấu hình
Định cỡ
Định giá sau khi đăng nhập và lập cấu hình

So sánh

Lợi ích
Integrated switching electronics for decentral and economic process monitoring and control
Function check and information on site thanks to LEDs and digital display
Compact pressure transducer for hygienic applications
Suitable for CIP/SIP cleaning
Small...

Hiển thị thêm
Integrated switching electronics for decentral and economic process monitoring and control
Function check and information on site thanks to LEDs and digital display
Compact pressure transducer for hygienic applications
Suitable for CIP/SIP cleaning
Small flush mounted hygienic process connections with 3-A and EHEDG certification
IO-Link reduces costs and complexity due to easy configuration and flexible integration in all fieldbus systems.

Hiển thị bớt

Phạm vi ứng dụng
Pressure switch for monitoring absolute and gauge pressures in gases, vapors, liquids and dusts.

Process connections: Hygienic connections, threads

Process temperature: -10 to +100°C (+14 to +212°F); +135°C (275°F) for max. 1h

Process pressure: 400mbar...

Hiển thị thêm
Pressure switch for monitoring absolute and gauge pressures in gases, vapors, liquids and dusts.

Process connections: Hygienic connections, threads

Process temperature: -10 to +100°C (+14 to +212°F); +135°C (275°F) for max. 1h

Process pressure: 400mbar to +40bar (6 to +600psi)

Accuracy: up to ±0.3%

Hiển thị bớt

Tín năng và thông số kỹ thuật

Quay lại

Details

Measuring principle

Pressure switch
Characteristic

Intelligent pressure switch with metal diaphragm for hygienic applications,

longterm stable
Supply voltage

10....30 VDC
Reference Accuracy

0.5 %,

Platinum: 0.3 %
Long term stability

0.2 % of URL/year
Process temperature

-40 °C...+100 °C

(-40 °C...+212 °F)
Ambient temperature

-20 °C...+70 °C

(-4 °F...+158 °F)
Measuring cell

+400 mbar....+40 bar

(+6 psi....+600 psi)
Max. overpressure limit

160 bar (2320 psi)
Process connection

Thread: M24
Process connection hygienic

DIN11851, Tri Clamp, SMS, Varivent
Communication

1x PNP switch

2x PNP switch

1x PNP switch + 4...20 mA analogue
Design approvals

EN 10204-3.1 final inspection report,

Cleaned from oil and grease,

Set min alarm
Hygienic approvals

FDA concurring

3A, EHEDG,

EG1935/2004
Specialities

Digital display,

Fully welded process connections

Hiển thị thêm
Hiển thị bớt

Tài liệu / Tài liệu hướng dẫn / Phần mềm

Hình thức tải về

Lọc

Ceraphant PTP33B Technical Information
Pressure switch for safe measurement and monitoring of absolute and
gauge pressure

Technical Information (TI)
Weld-in adapter, process adapter and flanges
Level and pressure measurement

Technical Information (TI)
Ceraphant PTC31B, PTP31B, PTP33B Operating Instructions
Pressure switch for safe measurement and monitoring of absolute and
gauge pressure

Operating Instruction (BA)
Ceraphant PTC31B, PTP31B, PTP33B IO-Link Operating Instructions
Pressure switch for safe measurement and monitoring of absolute and
gauge pressure

Operating Instruction (BA)
Ceraphant PTC31B, PTP31B, PTP33B IO-Link Brief Operating Instructions
Pressure switch for safe measurement and monitoring of absolute and
gauge pressure

Short Instruction (KA)

12/18

Tiếng Anh
Ceraphant PTC31B, PTP31B, PTP33B Brief Operating Instructions
Pressure switch for safe measurement and monitoring of absolute and
gauge pressure

Short Instruction (KA)

05/18

Tiếng Anh
Ceraphant PTP33B
Konformitätserklärung/Declaration of Compliance
HE_00318_01.16

Certificate (ZE)
Certificate of Compliance Cerabar T PMP135, Cerabar PMP23, Ceraphant PTP33B, PTP35
PE 50833 (EHEDG)

Certificate (ZE)
Mounting hints for weld-in adapter Level and pressure measurement Special Documentation
Mounting hints for weld-in adapter

Special Documentation (SD)
Valve plug
Valve plug

Special Documentation (SD)
Mechanical accessories for pressure measuring devices Pressure measurement Special Documentation
Mechanical accessories for pressure measuring devices

Special Documentation (SD)
Application conditions for seals and plastics in the food sector Level measurement, pressure measurement Special Documentation
Application conditions for seals and plastics in the food sector

Special Documentation (SD)
Komplettpaket Druckmesstechnik
Ein Ansprechpartner - spart Zeit und reduziert Kosten

Competence Brochure (CP)

05/15

Tiếng Đức
Ceraphant PTP33B
Druckschalter mit vollverschweißtem Metallsensor zur sicheren
Überwachung von
Absolut- und Relativdruck in Gasen, Dämpfen, Flüssigkeiten und Stäuben
für
hygienische Anwendungen

Tender Text

12/18

Tiếng Đức
IODD Single, IODD_IOL_PR_Ceraphant_0x92FE_0x01_0x01, 22.01.2019 (Pressure, Ceraphant, 0x92FE)
IO-Link,

IO-Link Version: Any

IO Device Description (IODD)

1.00.00

Language neutral
Deltapilot S, Deltapilot M, Deltabar S, Deltabar M, Deltabar, Ceraphant, Cerabar S, Cerabar M, Cerabar
Product Code: PTP33B-, PMP71-, PMP55-, PMP51-, PMP23-, PMD75-, PMD55-, FMD78-, FMD77-, FMD72-, FMB70-, FMB52-, FMB51-, FMB50-
Declaration Number: HE_01110_02.19
Manufacturer Specification: Food hygiene

Manufacturer Declaration

Tiếng Anh
Cerabar, Ceraphant
Product Code: PMC11-, PMC21-, PMP11-, PMP21-, PMP23-, PTC31B-, PTP31B-, PTP33B-
Declaration Number: HE_00360_01.16
Manufacturer Specification: RoHS

Manufacturer Declaration

Tiếng Đức , Tiếng Anh
Cerabar, Ceraphant
Product Code: PMP23-, PTP33B-
Declaration Number: HE_00373_01.16

Manufacturer Declaration

Tiếng Đức , Tiếng Anh
Ceraphant
Product Code: PTC31B-, PTP31B-, PTP33B-
Declaration Number: HE_00714_01.17
Manufacturer Specification: RoHS

Manufacturer Declaration

Tiếng Đức , Tiếng Anh
Ceraphant, Ceraphant T
Product Code: PTP33B-, PTP35-
Declaration Number: HE_00177_01.15
Manufacturer Specification: Food hygiene, 10/2011, 1935/2004

Manufacturer Declaration

Tiếng Đức , Tiếng Anh
Deltapilot S, Deltapilot M, Deltabar S, Deltabar M, Deltabar, Ceraphant, Cerabar S, Cerabar M, Cerabar
Product Code: PTP33B-, PMP71-, PMP55-, PMP51-, PMP23-, PMD75-, PMD55-, FMD78-, FMD77-, FMD72-, FMB70-, FMB52-, FMB51-, FMB50-
Declaration Number: HE_01110_01.19
Manufacturer Specification: Food hygiene

Manufacturer Declaration

Tiếng Anh
Ceraphant
Product Code: PTP33B-
Declaration Number: HE_00186_01.15
Manufacturer Specification: Food hygiene, 10/2011, 1935/2004

Manufacturer Declaration

Tiếng Đức , Tiếng Anh
Ceraphant
Product Code: PTP33B-
Declaration Number: HE_00929_01.18

Manufacturer Declaration

Tiếng Đức , Tiếng Anh
Deltapilot S, Deltapilot M, Deltabar S, Deltabar M, Deltabar, Ceraphant, Cerabar S, Cerabar M, Cerabar
Product Code: PTP33B-, PMP71-, PMP55-, PMP51-, PMP23-, PMD75-, PMD55-, FMD78-, FMD77-, FMD72-, FMB70-, FMB52-, FMB51-, FMB50-
Declaration Number: HE_01110_03.19
Manufacturer Specification: Food hygiene

Manufacturer Declaration

Tiếng Anh
Ceraphant
Product Code: PTP33B-
Declaration Number: HE_00567_01.17
Manufacturer Specification: RoHS

Manufacturer Declaration

Tiếng Trung Quốc
Ceraphant
Product Code: PTP33B-
Declaration Number: FDA_00139_03.17

FDA Declaration

Tiếng Đức , Tiếng Anh
Cerabar, Ceraphant, Levelflex, Liquiphant, Liquipoint
Product Code: PTP33B-, PMP23-, FTW33-, FTW23-, FTL33-, FMP53-
Declaration Number: FDA_00213_01.19

FDA Declaration

Tiếng Đức , Tiếng Anh
Ceraphant
Product Code: PTC31B-, PTP31B-, PTP33B-
Declaration Number: EC_00452_04.16

EU Declaration

Tiếng Đức , Tiếng Anh , fr
Waterpilot, Deltapilot S, Deltapilot M, Deltapilot, Deltabar S, Deltabar M, Deltabar, Ceraphant T, Ceraphant, Cerabar T, Cerabar S, Cerabar M, Cerabar
Product Code: PTP33B-, PTP31B-, PTC31B-, PTC31-, PMP75-, PMP71-, PMP55-, PMP51-, PMP23-, PMP21-, PMP11-, PMD75-, PMD55-, PMC71-, PMC51-, PMC21-, PMC131-, PMC11-, FMX21-, FMX167-, FMD78-, FMD77-, FMB70-, FMB53-, FMB52-, FMB51-, FMB50-
Region/Country: Russia (TR CU), Russia (Declaration of Conformity)
Approval Agency: EAC
Approval Number: RU D-DE.MO10.B.05287

Miscellaneous

Tiếng Nga
Prosonic S, Nivector, Micropilot, LIQUITREND, Liquipoint, Liquiphant M, Liquicap M, Levelflex, Deltapilot S, Deltapilot M, Deltabar S, Deltabar, Ceraphant, Cerabar T, Cerabar S, Cerabar M, Cerabar
Product Code: FTI52-, FTL33-, FTL330H-, FTL330L-, FTL50H-, FTL51H-, FTW23-, FTW33-, OTL330H-, OTP35-, PMC51-, PMC71-, PMP135-, PMP23-, PMP51-, PMP55-, PMP75-, PTP33B-, QMW43-, FDL60-, FDL61-, FDU91F-, FMB50-, FMB70-, FMD71-, FMD72-, FMD78-, FMI51-, FMI52-, FMP41C-, FMP43-, FMP52-, FMP53-, FMR245-, FMR52-, FMR62-, FTI26-, FTI51-
Region/Country: USA
Approval Agency: 3-A Sanitary Standards

Hygienic Equipment

Tiếng Anh
Deltapilot S, Deltapilot M, Deltabar S, Deltabar, Liquipoint, Liquiphant, Liquicap M, Liquiphant FailSafe, Liquiphant M, Levelflex, Ceraphant, Cerabar S, Cerabar M, Cerabar
Product Code: FMP53-, PMC51-, FMB50-, FMB70-, FMD71-, FMD78-, FTL33-, FTW33-, FTL81-, FTL80-, FTL51H-, FTL51-, FTL50H-, FTW23-, FTL50-, FTI52-, FTI51-, FMI52-, FMI51-, FTL31-, PTP33B-, PMP75-, PMP55-, PMP51-, PMP23-
Region/Country: Canada (CRN)
Approval Agency: CRN

Pressure Equipment

Tiếng Anh
Cerabar, Ceraphant
Product Code: PMC11-, PMC21-, PMP11-, PMP21-, PMP23-, PTC31B-, PTP31B-, PTP33B-
Region/Country: Canada (CRN)
Approval Agency: CRN

Pressure Equipment

Tiếng Anh
Waterpilot, Deltabar S, Cerabar S, Cerabar M, Deltapilot S, Deltabar M, Deltapilot M, Deltabar, Ceraphant T, Ceraphant, Cerabar T, Cerabar
Product Code: PTP35-, FMD78-, PMP71-, PMD75-, FMD77-, PMD70-, PMP75-, PMP51-, PMP55-, PMC71-, FMD76-, FMB53-, FMB70-, PMC51-, PMD55-, FMB50-, FMD72-, FMX21-, PTP33B-, PTP31-, PTC31-, PMP23-, PMP135-, PMP11-, PMC131-, FMX167-, FMD71-
Approval Agency: TÜV

Pressure Equipment

Tiếng Đức , Tiếng Anh
Ceraphant
Product Code: PTC31B-, PTP31B-, PTP33B-
Region/Country: Russia
Approval Agency: Rosstandart
Approval Number: DE.C.30.004.A NO 67872/1

Metrology

Tiếng Nga
Ceraphant
Product Code: PTC31B-, PTP31B-, PTP33B-
Region/Country: Canada, USA
Approval Agency: CSA

Ordinary Location Product Safety

Tiếng Anh
Cerabar, Cerabar T, Ceraphant, Ceraphant T
Product Code: PMP23-, PMP135-, PTP33B-, PTP35-
Region/Country: Europe
Approval Agency: TNO

Food Safety

Tiếng Anh

Hiển thị thêm
Hiển thị bớt

Phụ kiện / Phụ tùng thay thế

Tìm kiếm

Lọc

Order code

Specification

- Order code

  Unit is not repairable.

  Hiện chi tiết Ẩn chi tiết
- Order code 71336104

  Valve Plug ISO4400 M16, PTP/PTC3xB

  4-pole. Consists of: plug connector, srew, seal. Usage: PTC31B, PTP31B/PTP33B.

  Hiện chi tiết Ẩn chi tiết
- Order code 71336105

  Valve plug ISO4400 NPTF1/2, PTP/PTC3xB

  4-pole. Consists of: plug connector, srew, seal. Usage: PTC31B, PTP31B/PTP33B.

  Hiện chi tiết Ẩn chi tiết
- Order code 52024267

  EPDM O-rings process adapter M24

  5x O-ring 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTC31, PTP31/PTP33B/PTP35. process adapter M24.

  Hiện chi tiết Ẩn chi tiết
- Order code 71337274

  O-ring 15,54x2,62 FKM,FDA, PMP23, PTP3xx

  Consisting of: 5x O-ring 15,54x2,62 FKM,FDA. Usage: PMP23, PTP33B.

  Hiện chi tiết Ẩn chi tiết
- Order code

  Weld-in adapter and correspondig sealings

  Hiện chi tiết Ẩn chi tiết
- Order code 52005087

  Weld-in adapter G1, 316L

  Flush mount process connection. Material: 316L. Usage: PMP23, PMP51, PMP135, PTP33B/PTP35. Correct installation only with dummy.

  Hiện chi tiết Ẩn chi tiết
- Order code 52010171

  Weld-in adapter G1, 316L, 3.1

  Flush mount process connection. Material: 316L. Inspection cert. EN10204-3.1 material. Usage: PMP23, PMP51, PMP135, PTP33B/PTP35. Correct installation only with dummy.

  Hiện chi tiết Ẩn chi tiết
- Order code 52001051

  Weld-in adapter G1, d=60, 316L

  Flush mount process connection. Material: 316L. Seal: silicone O-ring. FDA, EHEDG, 3-A compliant. Usage: FMI51/FMI52, FTI51/FTI52, FTL20/FTL20H, FTL31/FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL80/FTL81, FTL260, FTW23, FTW33, PMP23, PMP51, PMP135, PTP33B/PTP35. Usage: TM401/TM411, TMR35.

  Hiện chi tiết Ẩn chi tiết
- Order code 52011896

  Weld-in adapter G1, d=60, 316L, 3.1

  Flush mount process connection. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: silicone O-ring. FDA, EHEDG, 3-A compliant. Usage: FMI51/FMI52, FTI51/FTI52, FTL20H, FTL31/FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL80/FTL81, FTL260, FTW23, FTW33, PMP23, PMP51, PMP135, PTP33B/PTP35. Usage: TM401/TM411, TMR35.

  Hiện chi tiết Ẩn chi tiết
- Order code 52005272

  Weld-in dummy, adapter G1

  To avoid any deformation of the adapters 52005087 / 52010171 during welding. Usage: PMP51, PMP135, PTP35.

  Hiện chi tiết Ẩn chi tiết
- Order code 71041381

  Weld-in adapter M24 D65, 316L

  Flush mount process connection. Core hole: 65mm. Material: 316L. Seal: EPDM O-ring FDA, EHEDG, 3-A compliant. Usage: FMP53, FTL33, FTW23, FTW33, PMP23, PTP33B.

  Hiện chi tiết Ẩn chi tiết
- Order code 71041383

  Weld-in adapter M24 D65, 316L, 3.1

  Flush mount process connection. Core hole: 65mm. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: EPDM O-ring. FDA, EHEDG, 3-A compliant. Usage: FMP53, FTL33, FTW23, FTW33, PMP23, PTP33B.

  Hiện chi tiết Ẩn chi tiết
- Order code 52014472

  O-ring 28.17x3.53 VMQ, FDA, 5 pcs.

  Material: silicone VMQ 70. Usage: weld-in adapter G1, 316L, (52001051) flush mount, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81, QMW43, Weld-in adapter G1, 316L, 3.1, (52011896) flush mount, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81,QMW43, sliding sleeve FTM21.

  Hiện chi tiết Ẩn chi tiết
- Order code 71086102

  O-ring 28.17x3.53 VMQ, FDA, USP, 3 pcs.

  Material: silicone VMQ. USP Class VI. Usage: weld-in adapter G1, 316L, (52001051) flush mount, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81, QMW43, Weld-in adapter G1, 316L, 3.1, (52011896) flush mount, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81,QMW43, sliding sleeve FTM21.

  Hiện chi tiết Ẩn chi tiết
- Order code 71140668

  O-ring 28.17x3.53 EPDM, FDA, USP, 3 pcs.

  Material: EPDM 70. USP Class VI, 3-A. Usage: weld-in adapter G1, 316L, (52001051) flush mount, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81, QMW43, Weld-in adapter G1, 316L, 3.1, (52011896) flush mounted, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81,QMW43, sliding sleeve FTM21.

  Hiện chi tiết Ẩn chi tiết

Hiển thị thêm
Hiển thị bớt

Sản phẩm cũ
- Ceraphant T PTP35

Tin tức
Ứng dụng Vận hành Endress+Hauser

Ứng dụng Vận hành Endress+Hauser cho phép Khách Hàng truy cập nhanh chóng các thông tin về sản phẩm cập nhật và chi tiết thiết bị như mã đặt hàng, tính khả dụng, phụ tùng thay thế và thông tin chung.
Đọc toàn bộ câu chuyện

Tin tức
Protection of pumps... and people

Adding a few sensors to a pump system can help make pumps run more efficiently and help discover problems before they get too serious – and, they may also save a life
Đọc toàn bộ câu chuyện
Sự kiện sắp tới
22.06.2020 - 26.06.2020
- Đào tạo cấp chứng chỉ Kỹ sư công nghệ PROFIBUS DP/PA
Thông qua các bài tập thực hành, Khách Hàng sẽ hiểu được chi tiết về công nghệ PROFIBUS fieldbus. Cuối khóa học, Khách Hàng sẽ có thể thiết kế và vận hành thử mạng PROFIBUS fieldbus.

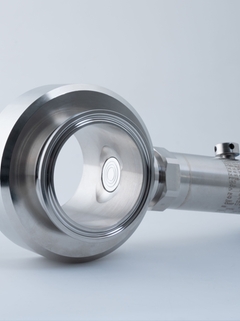

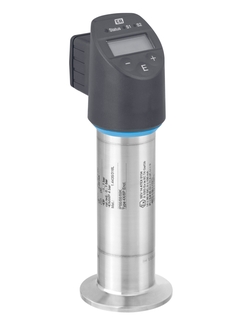

Absolute andgauge pressureCeraphant PTP33B

Cost-effective pressure switch with fully welded metal sensor for use in hygienic applications

Lợi ích

Phạm vi ứng dụng

Tín năng và thông số kỹ thuật

Details

Measuring principle

Characteristic

Supply voltage

Reference Accuracy

Long term stability

Process temperature

Ambient temperature

Measuring cell

Max. overpressure limit

Process connection

Process connection hygienic

Communication

Design approvals

Hygienic approvals

Specialities

Tài liệu / Tài liệu hướng dẫn / Phần mềm

Phụ kiện / Phụ tùng thay thế

Sản phẩm cũ

Ứng dụng Vận hành Endress+Hauser

Protection of pumps... and people

Absolute and
gauge pressure
Ceraphant PTP33B
