iTHERM TT411
Protection tube

State of the art Tee and Elbow elements with best-in-class hygienic design

Designed for hygienic and aseptic applications in the Food & Beverages and Life Sciences industries

Best applicable for use in hygienic or aseptic pipes and containers or tanks even with very small immersion lengths. It meets increased protection requirements of the temperature sensor regarding physical and chemical effects. Ideally suited to all measuring points that require regular recalibration by simply replacing the insert in closed processes.

Định cỡ
Định giá sau khi đăng nhập và lập cấu hình

So sánh

Chọn nhanh

Chọn theo đề xuất của chúng tôi

<%label%>
-- selected coding

-- selected label
<%label%>
Bạn muốn có nhiều lựa chọn hơn? Vui lòng sử dụng công cụ lựa chọn mã thiết bị để tiếp tục.
<%feature%>
-- selected coding

-- selected label
<%feature%>
<%coding%>

<%label%>

Bạn muốn có nhiều lựa chọn hơn? Vui lòng sử dụng công cụ lựa chọn mã thiết bị để tiếp tục.
Process Connection
<%coding%>

<%label%>

<%coding%>

<%label%>

<%message%>

Các add-on tùy chọn

Vui lòng sử dụng công cụ lựa chọn mã thiết bị để tiếp tục.

hoặc

Công cụ lựa chọn mã thiết bị

Tiếp tục lựa chọn từ tất cả tùy chọn có thể

Cấu hình

Lợi ích
iTHERM QuickNeck – cost and time savings thanks to simple, tool-free
recalibration of the insert used
Over 50 hygienic process connections
Global portfolio with metric and imperial versions
International certification: hygiene standards as per 3-A®, EHEDG...

Hiển thị thêm
iTHERM QuickNeck – cost and time savings thanks to simple, tool-free
recalibration of the insert used
Over 50 hygienic process connections
Global portfolio with metric and imperial versions
International certification: hygiene standards as per 3-A®, EHEDG, ASME BPE,
FDA, TSE Certificate of Suitability
Optional: 1.4435 material, delta ferrite content < 1%
Fast response time owing to reduced tips with thin walls

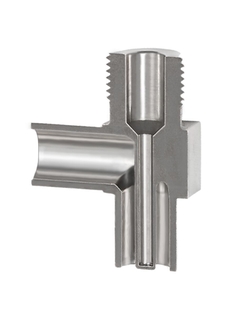

State of the art Tee and Elbow elements, without welds and dead legs and with best in class hygienic design

Hiển thị bớt

Phạm vi ứng dụng
Specially designed for use in hygienic and aseptic applications in the Food & Beverages and Life Sciences industries

Pressure range up to 40 bar (580 psi)

For increased protection requirements of the temperature sensor regarding physical and chemical...

Hiển thị thêm
Specially designed for use in hygienic and aseptic applications in the Food & Beverages and Life Sciences industries

Pressure range up to 40 bar (580 psi)

For increased protection requirements of the temperature sensor regarding physical and chemical effects

For use in pipes and containers or tanks

Ideally suited to all measuring points that require regular recalibration by simply replacing the insert in closed processes

Hiển thị bớt

Tín năng và thông số kỹ thuật

Quay lại

Details

Measuring principle

Fabricated Thermowell
Characteristic / Application

metric style

hygienic/aseptic design (3-A®, EHEDG, ASME BPE, FDA)

hygienic process connections

QuickNeck for easy and cost saving recalibration
Head connection

QuickNeck

male thread:

M24x1,5

G3/8"
Maximum standard immersion length

4.000 mm (157,48")
Max. immersion length on request

Not defined
Process connection

compression fitting

weld in adaptor

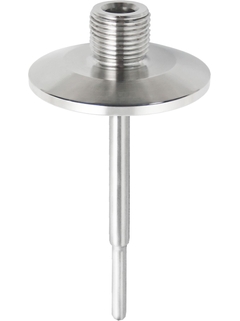

clamp connections acc. to ISO2852

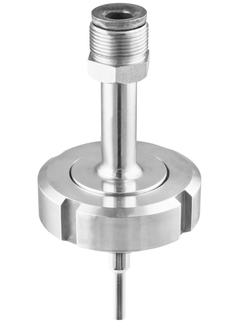

screwed pipe joint acc. to DIN 11851

aseptic screwed pipe joint acc. to DIN 11864-1

metallic sealing system

thread acc. to ISO 228 for liquiphant adaptor APV Inline
Varivent

Ingold

SMS 1147

Neumo Biocontrol

T- and corner pieces DIN11865
Thermowell root diameter

6,0 mm (0,24")

9,0 mm (0,35")

12,7 mm (0,5")
Medium contact material

1.4435 delta-ferrit < 1%

316L
Wetted part finishing (Ra)

< 0,76 μm (29,92 μin)

< 0,38 μm (14,96 μin)

< 0,38 μm (14,96 μin) electropolished
Tip shape

straight

reduced

tappered
Temperature range

-200...650 °C (-328...1.202 °F)
Max. process pressure (static)

40 bar (580 psi)
Max. process pressure at 400 °C

depends on process connection

Hiển thị thêm
Hiển thị bớt
