Electromechanical
Level measurement
Silopilot FMM50

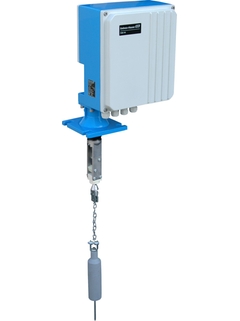

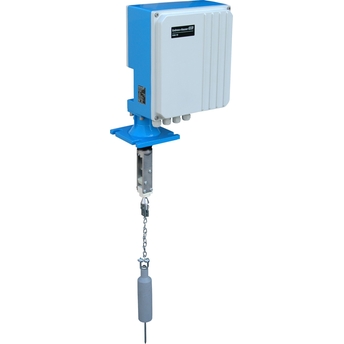

Silopilot FMM50 aluminium housing ©Endress+Hauser

For continuous level measurement even in high bulk solids silos or bins

Silopilot FMM50 is an electromechanical level system. Depending on the sensing weight, the level can be measured in bins or silos with dusty, fine-grained or coarse-grained bulk solids or in tanks with liquids.

Các thành phần bổ sung

  • Lợi ích

    • High reliability level measurement of powdery, fine-grained or coarse-grained bulk solids

    • Safe measurements in extremely dusty environments

    • Fully electronic digital minimum fail-safe control, therefore no running down of the sensor weight into the silo...

  • Phạm vi ứng dụng

    For level measurement in bunkers or silos for dusty, fine or coarse-grained bulk products, or in tanks containing liquids.

    • Process connection: Flange

    • Temperature: -40 to +230°C (-40 to +446°F)

    • Pressure: 0.8 to 3bar (11.6 to 43.5psi)

    • Measuring range:...

Tín năng và thông số kỹ thuật

Quay lại

Details

  • Measuring principle

    Electromechanical

  • Characteristic / Application

    Not affected by characteristics of solid medium
    Mesuring range: 70m

  • Specialities

    Switch to indicate need of maintenance (predictive maintenance)

  • Supply / Communication

    180 ... 253 V, 50/60 Hz

  • Accuracy

    +/- 5 cm

  • Ambient temperature

    -40°C ... +70°C
    (-40°F ... 158°F)

  • Process temperature

    -20°C ... +230°C
    (-4°F ... 446°F)

  • Process pressure absolute / max. overpressure limit

    0.8 ... 3 bar
    (11.6psi...43.5psi)

  • Main wetted parts

    Aluminium, Steel, Stainless steel

  • Process connection

    Flange DN100 PN16 / 4"

  • Blocking distance

    Top: 500 mm (20 ")

  • Max. measurement distance

    70m (230ft)

  • Communication

    0/4...20 mA

  • Certificates / Approvals

    ATEX

  • Design approvals

    EN10204-3.1

Tài liệu / Tài liệu hướng dẫn / Phần mềm

  • Technical Information Silopilot M FMM50

    Electromechanical Level Measuring Systems

    Technical Information (TI)
  • Silopilot FMM50 Operating Instructions

    Electromechanical level system

    Operating Instruction (BA)
  • Silopilot T FMM20 Silopilot M FMM50

    Approval No.: BVS 05 ATEX E 049


    ATEX II 1/2 D Ex ta/tb IIIC T99°C Da/Db IP6x

    ATEX II 2 D Ex tb IIIC T99°C Db IP6x

    Ex Safety Instructions (XA)
