TH54

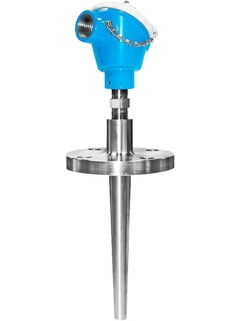

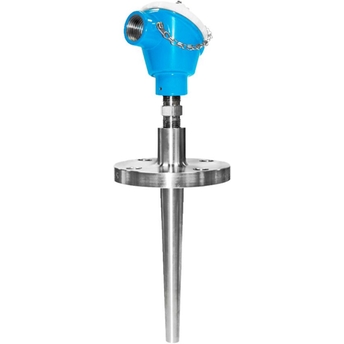

Modular TC thermometer, US style
Best in class temperature measurement technology for general applications
The high modular thermometer is used for several applications with harsh environments, e.g. in power plants, refineries or in the chemical or petrochemical industry. The robust device with barstock thermowell, flange connection and different head transmitter is a complete unit ready for use with enhanced measurement accuracy and reliability. A variety of dimensions and materials, like SS316, INCONEL600, HastelloyC276, Titan or Monel, offer flexible application possibilities.
-
Sản phẩm chuyên dụng
- Dành cho các ứng dụng đòi hỏi cao
Công nghệ vượt trội
Đơn giản
Có thể thay đổi
| Lựa chọn FLEX | Công nghệ vượt trội | Đơn giản |
|---|---|---|
Lựa chọn Fundamental Đáp ứng nhu cầu đo lường cơ bản |
Công nghệ vượt trội
|
Đơn giản
|
Lựa chọn Lean Xử lý dễ dàng các quy trình cốt lõi |
Công nghệ vượt trội
|
Đơn giản
|
Lựa chọn Extended Tối ưu hóa quy trình bằng công nghệ tiên tiến |
Công nghệ vượt trội
|
Đơn giản
|
Lựa chọn Xpert Làm chủ các ứng dụng khó khăn nhất |
Công nghệ vượt trội
|
Đơn giản
Có thể thay đổi |
-
Tổng quan về thông số kỹ thuật
-
Accuracy
Standard acc. to ASTM E-230
Special acc. to ASTM E-230 -
Response time
depending on configuration
63% rt = 15,0 s -
Max. process pressure (static)
at 20°C: 500 bar (7252 psi)
depends on configuration -
Operating temperature range
Type T:
-270 °C ...370 °C
(-454 °F ...698 °F)
Type J:
-210 °C ... 720 °C
(-346 °F ...1.328 °F)
Type E:
-270 °C ... 820 °C
(-454 °F ...1.508 °F)
Type K:
-270 °C ...1.150 °C
(-454 °F ...2.102 °F)
Type N:
-270 °C ... 1.150 °C
(-454 °F ...2.102 °F) -
Max. immersion length on request
up to 24'' (609 mm)
others on request
-
Các thành phần bổ sung
-
Lợi ích
One source shopping for temperature measurement solutions. World class transmitter with integrated sensor offering for heavy process industry applications.
Remove and install straight out of the box!
Improved galvanic isolation on most devices (2 kV)
...
-
Phạm vi ứng dụng
The TH54 temperature sensors are Thermocouple assemblies installed in Thermowells and designed for use in all types of process industries, including heavy industries, due to their rugged design. They are made up of a Magnesium Oxide insulated...
Tài liệu / Tài liệu hướng dẫn / Phần mềm
-
TH53, TH54 and TH55
Thermocouples TH53, TH54 and TH55 assemblies
in thermoewells with spring loaded insert
and terminal heads for process industryTechnical Information (TI) -
TH54
Compact Instructions
Thermocouple assembly in flanged thermowell
Short Instruction (KA)02/13Tiếng Anh -
Control Drawing CSA Intrinsically Safety, Nonincendive THxx, Txx Series,
TU111, TU121, TU211, TU221
Installation Notes for Hazardous Locations
Certificate FM/CSA (ZD) -
Mesure de température
Capteurs et transmetteurs pour les industries de process
Fields of Activities (FA)12/19French -
温度测量
过程工业用温度传感器和温度变送器
Fields of Activities (FA)12/14Tiếng Trung Quốc -
Pomiar temperatury
Czujniki i przetworniki pomiarowe
do kontroli przemysłowych procesów technologicznychFields of Activities (FA)10/14Người Ba Lan -
Измерение температуры
Датчики температуры и преобразователи для любых
отраслей промышленности.Fields of Activities (FA)06/13Tiếng Nga -
Misura della temperatura
Termometri e trasmettitori
per l'industria di processoFields of Activities (FA)04/18Tiếng Ý -
Catálogo medición temperatura
Termómetros y transmisores para la industria de proceso
Fields of Activities (FA)04/18Tiếng Tây Ban Nha -
Field of activities FA Temperature measurement
Thermometers and transmitters for the process industry
Fields of Activities (FA)03/13Tiếng Anh -
Sıcaklık Ölçümü
Proses endüstrisi için termometreler ve transmiterler
Fields of Activities (FA)03/13Tiếng Thổ Nhĩ Kỳ -
Temperature measurement
Thermometers and transmitters for the process industry
Fields of Activities (FA)02/20Tiếng Anh -
Temperaturmesstechnik
Thermometer und Transmitter für die Prozessindustrie
Fields of Activities (FA)02/20Tiếng Đức -
Измерение температуры
Ключевые особенности термометров Endress+Hauser для нефтегазовой отрасли
Competence Brochure (CP)08/11Tiếng Nga -
Инженерные решения по термометрии
Специальные решения по термометрии для химической и
нефтеперерабатывающей промышленностиCompetence Brochure (CP)04/10Tiếng Nga -
RTD-thermometer, Process TC Heavy duty, Process TC General purpose, Process TC Explosion proof, Process TC direct in contact, Process TC Direct contact, Process RTD Hygienic, Process RTD Heavy duty, Process RTD General purpose, Process RTD Explosion proof, Process RTD direct in contact, Process RTD Direct contact, Plugs RTD direct contact, Magphant, Low cost RTD General purpose, Industrial Modular Thermometer
Product Code: TR15-, TR13-, TR12-, TR11-, TR10-, TMT470L-, TMT162R-, TMT162C-, TMT142R-, TMT142C-, TMR35L-, TMR35-, TMR31L-, TMR31-, TM411-, TM401-, TH56-, TH55-, TH54-, TH53-, TH52-, TH51-, TR24-, TTR35-, TTR31-, TST90-, TST602-, TST487-, TST434-, TST41N-, TST414-, TST410-, TST40N-, TST310-, TST187-, TSM487-, TSM187-, TSC310-, TR88-, TR66-, TR65-, TR63-, TR62-, TR61-, TR25-, TH27-, T55-, T54-, T53-, T15-, T14-, T13-, OTR96-, OTR95-, OTR94-, OTR93-, OTR92-, OTR91-, OTR90-, OTR35-, OTR31-, MLTTS01-, MLTTS00-, GPTL-, DTT35L-, DTT35-, DTT31L-, DTT31-, TAF11-, TH18-, TH17-, TH15-, TH14-, TH13-, TH12-, TH11-, TEC420-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-, TAF16-, TAF12T-, TAF12S-, TAF12D-
Declaration Number: EC_00568_01.17EU DeclarationTiếng Đức , Tiếng Anh , French -
TC Heavy duty, Process TC Heavy duty, Process TC Explosion proof, Process RTD Explosion proof, ACCESSORIES: TC INSERT, ACCESSORIES: RTD INSERT
Product Code: TH55-, TH54-, TH53-, TH15-, TU111-, TU121-, TU211-, TU221-, TH14-, TH13-
Region/Country: USA
Approval Agency: CSA
Category: I//A,B,C,D/
Protection: IS, NIExplosion ProtectionTiếng Anh -
ACCESSORIES: PIPE THERMOWELL, Process RTD Explosion proof, Process RTD Hygienic, Process TC Explosion proof, Process TC Heavy duty, TC Heavy duty
Product Code: TU67-, TU55-, TU54-, TU53-, TU52-, TU51-, TH54-, TH53-, TH27-, TH14-, TH13-, T54-, T53-, T14-, T13-
Region/Country: Canada, Canada (CRN)
Approval Agency: CRNPressure EquipmentTiếng Anh
Phụ kiện / Phụ tùng thay thế
-
-
Order code 71044062
Fixing kit cpl. TMT8x/7x USA(american)
2x screws, 1x sealing CDI-connector
-
Order code 71386275
-
Order code TMT142X-DA
Display HART5 + fitting kit + twist protection
-
-
-
Nr F Order code TMT142X-HI
Housing cover blind, Alu + O-ring
-
Nr F Order code TMT142X-HL
Housing cover cpl. for display, Alu + O-ring
-
-
-
Order code TMT162A-MA
Mounting bracket,North American region standard model,stainl.steel wall/tube 2"
-
Order code TMT162A-MB
Cable gland NPT1/2, North American region standard model,2xD0.5 cables
-
Order code TMT162A-MD
Mounting bracket 2"tube V4A
-
Order code TMT162X-DA
Display HART5 + fitting kit + twist protection
-
Order code TMT162X-DB
Display PA/FF + fitting kit + twist protection
-
Order code TMT162X-DC
Display fitting kit + twist protection
-
-
-
Nr F Order code TMT162X-HI
Housing cover blind, Alu + O-ring
-
Nr F Order code TMT162X-HL
Housing cover cpl. for display, Alu + O-ring
-
-
-
Order code 51006845
Cable gland NPT1/2, D4.5-8.5 IP68
-
Order code 51007995
Mounting bracket SS316L, tube 1,5-3"
-
-
-
Nr A Order code TU121-
TC-Insert TU121, Gen.Purp. U.S.Style
Spare part. Thermocouple Insert spring loaded. Thermocouple comply with EMF tables of ASTM E-230 and IEC60584. Color codes per ASTM E-230.
-
-
-
Nr F Order code TU401-
Enclosure TU401, U.S.Style
-
-
-
Order code XPT0004-
-
-
-
Nr F Order code TA30H-
Terminal Head TA30H
Retainer for terminal block or head transmitter + optional display. Design: explosion proof. Cover: screwed, optional window. Material: aluminium. Coating: polyester powder-coating. Colour: body blue, cover grey. Ambient temp.: -50 150 oC (housing). Protection: IP66/68, NEMA 4X (housing). Protection Ex d/XP: IP66/67 (housing).
-
-
-
Nr A Order code TA30R-
Terminal Head TA30R
Retainer for terminal block or head transmitter + optional display. Cover: screwed, optional window. Material: Stainless Steel 316L. Colour: Steel (no coating). Ambient Temp.: -50...85/130 oC (display/standard). Protection: IP66/68, NEMA4X; IP69K (housing). :: easy wiring through best accessibility. :: compact desing and low weight.
-
-
-
Nr E Order code TU54-
Thermowell TU54, Flanged U.S.Style
Bar stock Thermowell, CRN Number. The Flange is welded on.
-
-
-
Order code TMT142E-
Electronic TMT142E
-
Order code TMT162E-
Electronic TMT162
-
Order code TMT181-
iTEMP TMT181, Head Transmitter PCP
Product being phased out, limited availability. Temperature transmitter,PC-programmable. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, galvanic isolation. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed.
-
Order code TMT182-
iTEMP TMT182, Head Transmitter HART
Product being phased out, limited availability. Temperature transmitter, Protocol HART. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, galvanicisolation. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed.
-
Order code TMT82-
iTEMP TMT82, Transmitter HART
2-wire temperature transmitter. Dual universal sensor input. Galvanic isolation 2kV (input/output). Application: RTD, TC, Ohm and mV. ::Highly reliable due to drift detection and sensor back up. ::Optional also for safety critical applications by means of SIL 2/3 acc. to IEC61508.
-
Order code TMT84-
iTEMP TMT84, Transmitter PA
Dual sensor input. Advanced diagnostics:sensor monitoring. PROFIBUS PA Profile 3.02. Galvanic isolation 2kV. Application: RTD, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN EN50446. Factory setup: CH1: Pt100, 3-wire, oC. CH2: inactive. Differing configuration optional selectable.
-
Order code TMT85-
iTEMP TMT85, Transmitter FF
Dual sensor input. Advanced diagnostics: sensor monitoring. FOUNDATION Fieldbus protocol Galvanic isolation 2 kV. Application: RTC, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN EN50446. Factory setup: CH1: Pt100, 3-wire, oC. CH2: inactive. Differing configuration optional selectable.
-
-
-
Nr F Order code TMT142G-
Housing TMT142G
-
Nr F Order code TMT162G-
Housing TMT162
-
-
-
Order code TXU10-
Configuration Kit TXU10
for PC-programmable devices. set-up programme+interface cable for PC with USB-Port.
-
Order code READWIN-
Readwin 2000 Operation + Read. software
-
Order code TID10-
Display Unit Head Transmitter
to plug on. Dot-Matrix measured value display. 12 DIP-switches buttom side. Settings: FF: Simulation, Write Lock. PA: Bus address, Write Lock. Compatible: TMT85, TMT84, TMT82.
-
Order code FXA195-
Commubox FXA195
Modem to connect HART field devices to a computer via USB. Commissioning of field devices with software tool. :: To connect to a intrinsically safe signal circuit. :: SIL2, IEC61508.
-
Order code TH55-
TC-Assembly TH55, Spring U.S.Style
Spring loaded temperature measuring device, without thermowell. Comply with EMF tables of ASTM E-230 and IEC60584. Color Codes per ASTM E-230.
-
