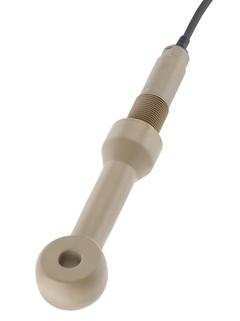

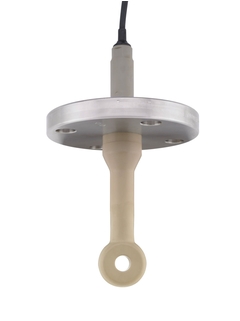

Digital conductivity sensor
Indumax CLS50D

The conductivity of a liquid can be measured using the conductive or toroidal measuring principles. This video shows what it is about and how these measuring principles work.

Memosens toroidal conductivity sensor for chemical applications

Indumax CLS50D is a digital inductive conductivity sensor for standard, hazardous and high-temperature applications. Benefit from high chemical resistance and long durability thanks to robust materials (PFA, PEEK). Moreover, it is insensitive to soiling and performs reliable and repeatable even in harsh and aggressive media. Thanks to Memosens, CLS50D combines maximum process and data integrity with simple operation. It resists corrosion and moisture and facilitates predictive maintenance.

Thêm vào giỏ hàng
Đặt cấu hình
Chọn & Kích thước
Định giá sau khi đăng nhập và lập cấu hình

So sánh

Các thành phần bổ sung

Memograph M RSG45
Advanced Data Manager

Saves, visualizes, analyzes and communicates
Thông tin bổ sung
So sánh
RNB130
Primary switched-mode power supply for DIN rail

Power supply for one 4 wire sensor or transmitter.
Thông tin bổ sung
So sánh
Ecograph T RSG35
Universal Graphic Data Manager

Paperless recording, visualization and monitoring of the process values at the same time
Thông tin bổ sung
So sánh
RN221N
Active barrier with optional HART® diagnosis

Active barrier with power supply for safe separation of 4...20 mA current circuits
Thông tin bổ sung
So sánh

Lợi ích
High durability and chemical resistance even under harsh conditions
Dirt-repellent materials and large sensor opening avoid soiling
Wide temperature range and highly resistant materials make the sensor suitable for virtual any application
Reliable values...

Hiển thị thêm
High durability and chemical resistance even under harsh conditions
Dirt-repellent materials and large sensor opening avoid soiling
Wide temperature range and highly resistant materials make the sensor suitable for virtual any application
Reliable values thanks to active connection monitoring
Easy wiring over long distances without impact on the measurement accuracy

Logging of sensor-specific data for easy traceability

Approved for hazardous area use

Hiển thị bớt

Phạm vi ứng dụng
Indumax CLS50D measures toroidal conductivity in:

Chemicals:
- Concentration measurement of acids and bases
- Quality monitoring of chemical products in tanks and pipes

Food & Beverages:
- Phase separation of product/product mixtures in pipe systems

...

Hiển thị thêm
Indumax CLS50D measures toroidal conductivity in:

Chemicals:
- Concentration measurement of acids and bases
- Quality monitoring of chemical products in tanks and pipes

Food & Beverages:
- Phase separation of product/product mixtures in pipe systems

Life Sciences:
- Phase separation of product/product mixtures in pipe systems

Wastewater industry:
- Inlet monitoring

With its international explosion protection approvals, such as ATEX, FM, CSA, NEPSI, it is suitable for hazardous areas.

Hiển thị bớt
