iTEMP TMT71
Temperature transmitter

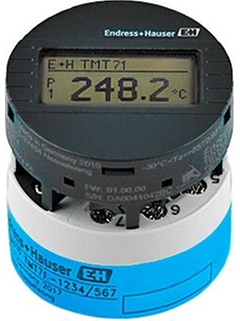

Product picture temperature transmitter TMT71 with TID10 ©Endress+Hauser

Temperature transmitter with pluggable display TID10

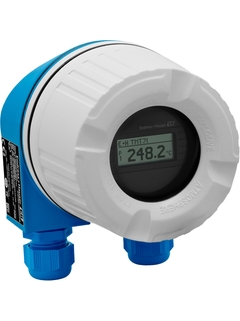

Product picture temperature transmitter TMT71 installed in field housing TA30H ©Endress+Hauser

Temperature transmitter installed in a explosion protected field housing

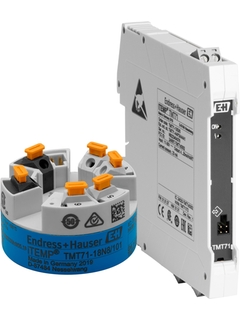

Product picture temperature transmitter TMT71 ©Endress+Hauser

Device commissioning via SmartBlue

Transformation of sensor signals into stable and standardized output signals for all industries

Unsurpassed reliability, accuracy and long-term stability in critical processes across all industries. The configurable transmitter transfers converted signals from RTD and thermocouple (TC) temperature probes, as well as resistance and voltage signals. The standardized 4 to 20 mA output signal is used for process measurement. Swift and easy commissioning, operation and maintenance via PC software or with integrated Bluetooth® technology and Endress+Hauser SmartBlue App.

Chọn nhanh

Chọn theo đề xuất của chúng tôi
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

hoặc

Công cụ lựa chọn mã thiết bị

Tiếp tục lựa chọn từ tất cả tùy chọn có thể
  • Lợi ích

    • Safe operation in hazardous areas thanks to international approvals

    • Reliable operation thanks to sensor and device monitoring

    • Integrated Bluetooth® interface for the wireless display of measured values and configuration via Endress+Hauser SmartBlue App...

  • Phạm vi ứng dụng

    • Bluetooth®-enabled or PC programmable temperature transmitter for the conversion of various input signals into a scalable, analog 4 to 20 mA output signal

    • Improved process efficiency and increased plant uptime

    • Universal input for resistance thermometers...

Tín năng và thông số kỹ thuật

Quay lại

Details

  • Measuring principle

    Head transmitter

  • Input

    1 x RTD, TC, Ohm, mV

  • Output

    1 x analog 4...20 mA

  • Auxiliary power supply

    10...36 V DC (Head transmitter)

    11...36 V DC (DIN rail device)

    10/11...30 V DC (Ex-version)

  • Communication

    PC-programmable

    Bluetooth®

  • Installation

    Terminal head form B / DIN rail / in field

  • Accuracy

    (Pt100, -50...200 °C) <= 0,1 K

    (Pt100, -58...392 °F) <= 0,18 °F

  • Galvanic isolation

    yes

  • Certification

    ATEX II1G Ex ia IIC T6

    ATEX II3G Ex ic IIC T6 Gc

    ATEX II3D Ex tc IIIC Dc

    ATEX II3G Ex nA IIC T6

    ATEX IECEx II1G Ex ia IIC T6, II2D Ex ia IIIC

    ATEX II3G Ex nA IIC T6, II3D

    ATEX II2G Ex db IIC T6 Gb, II2D Ex tb IIIC Db

    CSA C/US General Purpose

    CSA C/US IS, NI I/1+2/A-D

    CSA C/US XP, DIP I, II, III/1+2/A-G

    EAC Ex ia IIC T6 Ga

    EAC Ex d IIC T6 Gb

    IECEx Ex d T6 Gb, Ex tb IIIC Db

    INMETRO Ex ia IIC T6 Ga

    INMETRO Ex d T6 Gb, Ex tb IIIC Db

    INMETRO Ex nA IIC T6 Gc

    NEPSI Ex ia IIC T6 Ga

    NEPSI Ex d IIC T6 Gb

    NEPSI Ex nA II T6 Gc

    ATEX IECEx II1G Ex ia IIC T6 Ga

    ATEX IECEx II2D Ex tb IIIC Db

    DNV GL
